Specification	44A0121-22-0/9-MX

Cable Type	Conductor, Multi
Conductor Arrangement	Twisted
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Gauge	34 AWG
Jacket (Insulation) Diameter	0.094 in
Jacket Color	White, Black
Length	12 in
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Number of Conductors - Pair	1
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Spool Size	2000 ft
Voltage	600 V
Wire Gauge	22 AWG

44A0121 Series

Part	Jacket Color	Jacket (Insulation) Diameter	Conductor Material	Wire Gauge	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Voltage	Conductor Strand Gauge	Conductor Strand Count	Length	Length

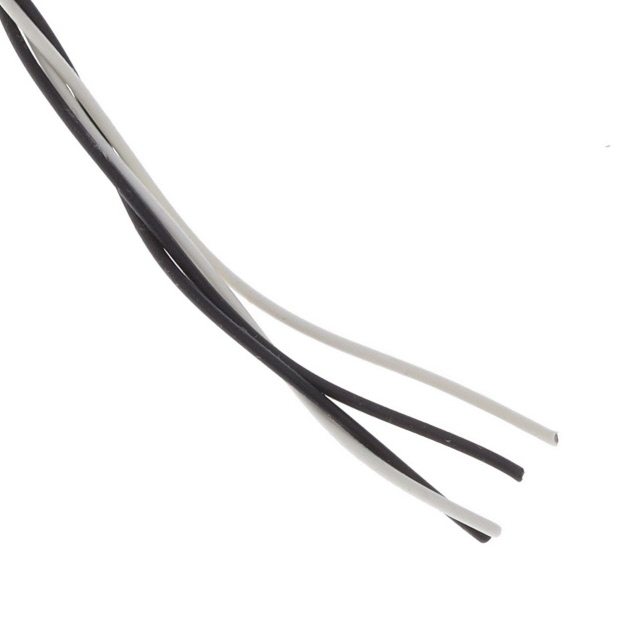

TE Connectivity AMP Connectors 44A0121-24-90/92	Black Stripe Red Stripe White	0.08 in	Copper Tinned	24 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	36	19
TE Connectivity AMP Connectors 44A0121-26-9/96	Blue Stripe White	0.068 in	Copper Tinned	26 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	38 AWG	19
TE Connectivity AMP Connectors 44A0121-22-9/96CS2275	Blue White	0.094 in	Copper Tinned	22 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	34 AWG	19	5 ft 12 in 25 ft 50 ft 100 ft 500 ft	Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors 44A0121-16-0/9-MX	Black White	0.144 in	Copper Tinned	16 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	29 AWG	19	1000 ft
TE Connectivity AMP Connectors 44A0121-22-9/908		0.094 in	Copper Tinned	22 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	34 AWG	19
TE Connectivity AMP Connectors 44A0121-16-90/92	Black Stripe Red Stripe White	0.144 in	Copper Tinned	16 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	29 AWG	19
TE Connectivity AMP Connectors 44A0121-22-9/907
TE Connectivity AMP Connectors 44A0121-24-0/9CS356
TE Connectivity AMP Connectors 44A0121-26-0/6-US	Black Blue	0.068 in	Copper Tinned	26 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	38 AWG	19
TE Connectivity AMP Connectors 44A0121-18-0/9-MX	Black White	0.13 in	Copper Tinned	18 AWG	Conductor Multi	-65 °C	150 °C	2	Twisted	1	600 V	30 AWG	19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

44A0121-22-0/9-MX | Datasheet

Raychem Wire and Cable Quick Reference Guide

Datasheet

ENG_CD_44A012X_E.pdf

Wire and Cable, Electric, Radiation-Crosslinked, Polyalkene-Insulated, Copper or Copper Alloy
