5PX3000HRTNG2
ActiveEaton Tripp Lite

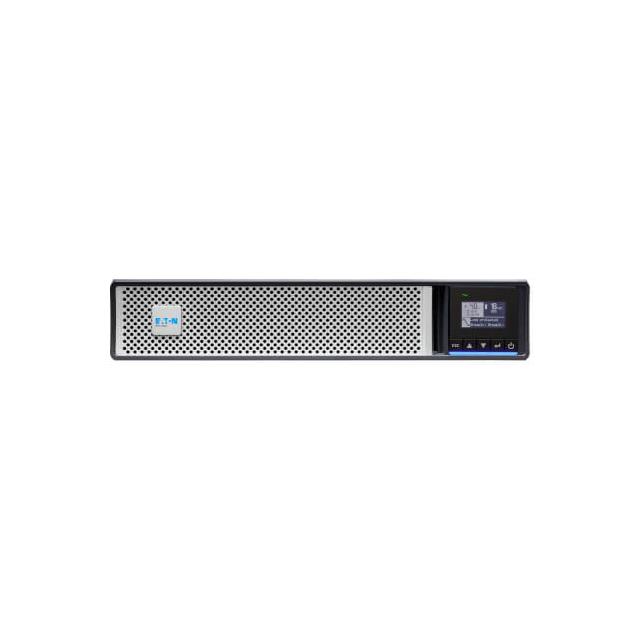

EATON 5PX G2 3000VA 3000W 208V L
5PX3000HRTNG2
ActiveEaton Tripp Lite
EATON 5PX G2 3000VA 3000W 208V L
Description
General part information
5PX3000HRTNG2
EATON 5PX G2 3000VA 3000W 208V L
Technical Specifications
Parameters and characteristics for this part
| Specification | 5PX3000HRTNG2 |
|---|---|
| AC Outlets (Count) | 10 count |
| Applications | Network, 3-Phase |
| Approval Agency | UL, CSA, NOM |
| Backup Time - Max Load | 3 minutes |
| Cord Length | 6 ft |
| Form | Rackmount, Tower |
| Height | 3.4 in |
| Input Connector | NEMA L6-20P |
| Media Lines Protected | RS-232 |
| Output Connector | IEC 320-C19, IEC 320-C13, IEC 320-C19 (2), IEC 320-C13 (8) |
| Output Connector Quantity (IEC 320-C13) | 8 |
| Output Connector Quantity (IEC 320-C19) | 2 |
| Power - Rated (VA) | 3 kVA |
| Power - Rated (W) | 3 kW |
| Size / Dimension Length | 23.7 in |
| Size / Dimension Width | 17.2 in |
| Type | Line Interactive (Input Regulation) |
| Voltage - Input | 208 VAC, 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
