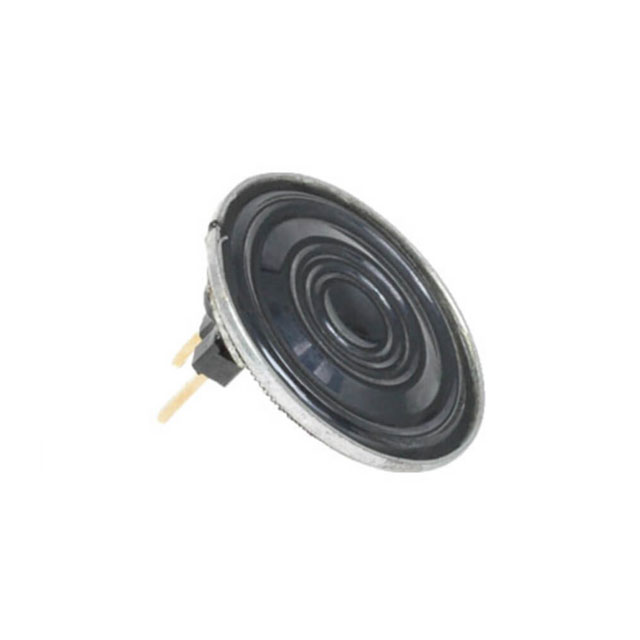

GC0201MAP-1
ObsoleteSame Sky (Formerly CUI Devices)
SPEAKER 8OHM 400MW TOP PORT 81DB
GC0201MAP-1
ObsoleteSame Sky (Formerly CUI Devices)
SPEAKER 8OHM 400MW TOP PORT 81DB
Description
General part information
GC0201MAP-1
8 Ohms General Purpose Speaker 400 mW 850 Hz ~ 7 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | GC0201MAP-1 |
|---|---|
| Efficiency - dBA | 81 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range (Max) | 7 kHz |
| Frequency Range (Min) | 850 Hz |
| Height - Seated (Max) | 0.126 in |
| Impedance | 8 Ohm |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 800 mW |
| Power - Rated | 400 mW |
| Shape | Round |
| Size / Dimension Diameter | 0.787 in |
| Technology | Magnetic |
| Termination | PC Pins |
| Type | General Purpose |
