130861

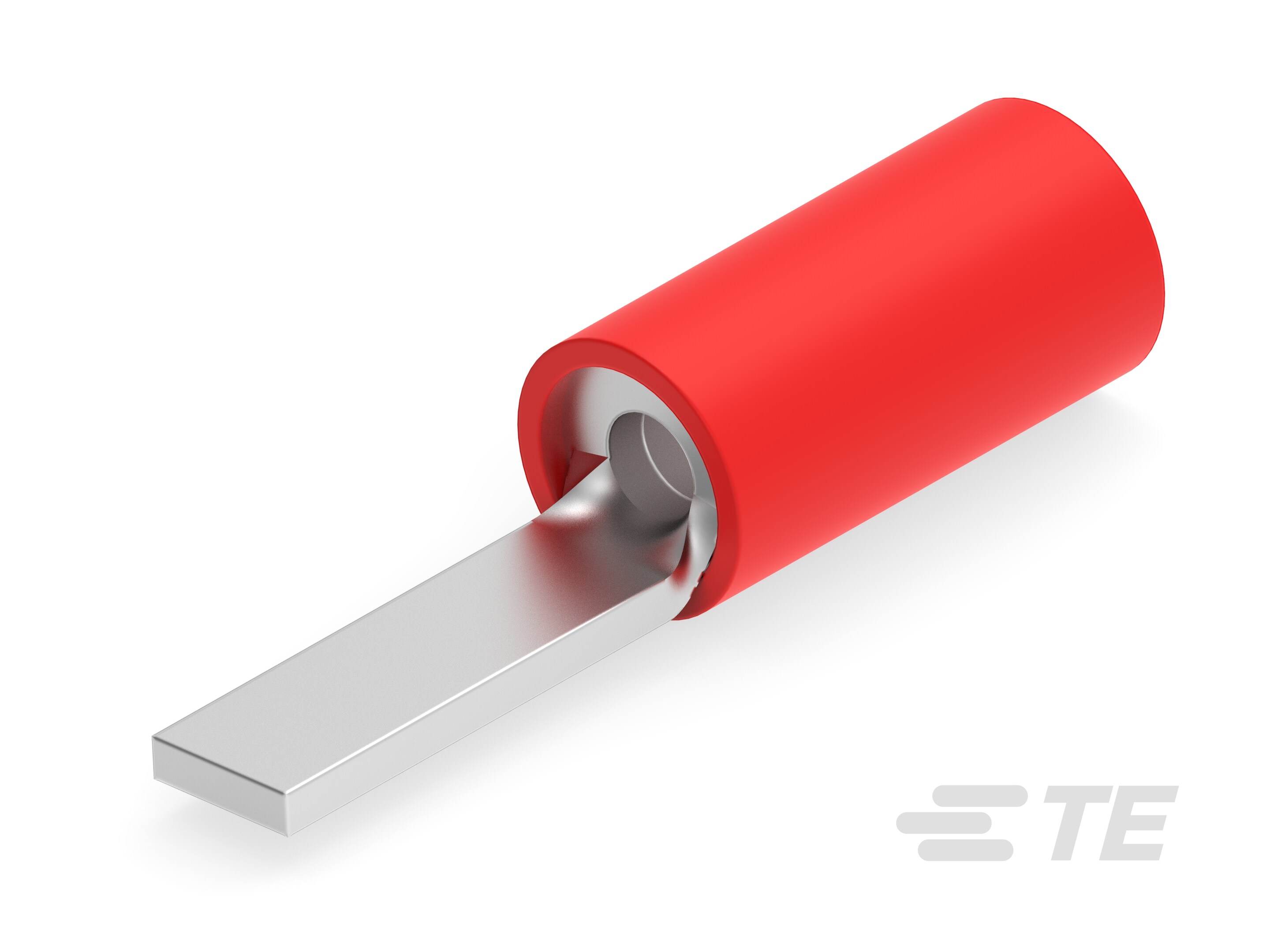

Tab, 2.92 mm [.115 in] Tab Width, .79 mm [.031 in] Tab Thickness, 22 – 16 AWG, .3 – 1.42 mm² Wire, 642 – 3256 CMA, Closed Barrel, Tin Plating, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 130861 |
|---|---|
| Color | Red |
| Insulation | Insulated |
| Insulation Diameter | 0.138 in |
| Length - Overall | 0.768 in |
| Length - Pin | 0.343 " |
| Pin Diameter Height | 0.031 in |
| Pin Diameter Shape | Rectangular |
| Pin Diameter Width | 0.116 in |
| Termination | Crimp |
| Wire Gauge | 16-22 AWG |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Gauge (Cross-Sectional Area) (Max) | 1.6 mm² |
| Wire Gauge (Cross-Sectional Area) (Min) | 0.2 mm² |
