Specification	LCMXO2-4000ZE-1UWG81ITR

Mounting Type	Surface Mount
Number of LABs/CLBs	540
Number of Logic Elements/Cells	4320
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C

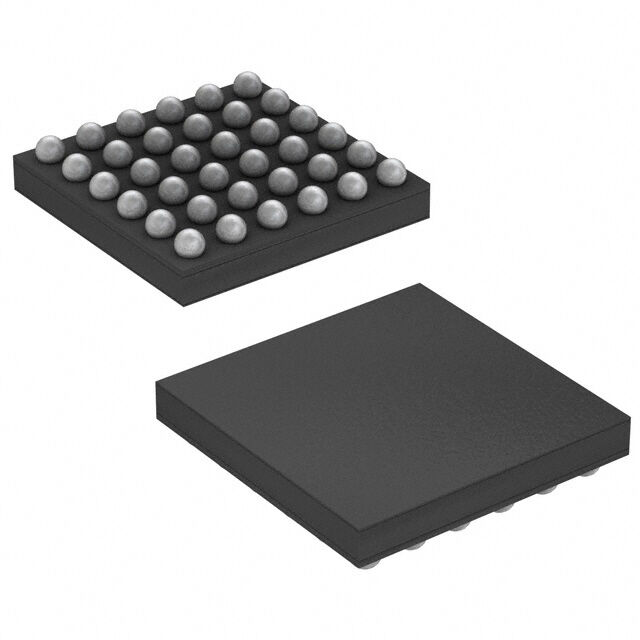

Package / Case	WLCSP, 36-UFBGA
Package Length	0.1 in
Package Name	36-WLCSP
Package Width	2.59 mm
Total RAM Bits	94208 bits
Voltage - Supply (Maximum)	1.26 V
Voltage - Supply (Minimum)	1.14 V

LCMXO2-4000 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of LABs/CLBs	Package / Case	Package Length	Package Name	Package Width	Number of Logic Elements/Cells	Number of I/O	Total RAM Bits
Lattice Semiconductor Corporation LCMXO2-4000HC-4FTG256C	85 °C	0 °C	Surface Mount	2.375 V	3.465 V	540	256-LBGA	17 mm	256-FTBGA	17 mm	4320	206	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000ZE-1FTG256C	85 °C	0 °C	Surface Mount	1.14 V	1.26 V	540	256-LBGA	17 mm	256-FTBGA	17 mm	4320	206	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000HE-4MG184I	100 °C	-40 °C	Surface Mount	1.14 V	1.26 V	540	184-LFBGA CSPBGA	8 mm	184-CSBGA	8 mm	4320	150	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000HC-4BG256I	100 °C	-40 °C	Surface Mount	2.375 V	3.465 V	540	256-LFBGA	14 mm	256-CABGA	14 mm	4320	206	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000HE-6BG332C	85 °C	0 °C	Surface Mount	1.14 V	1.26 V	540	332-FBGA	17 mm	332-CABGA	17 mm	4320	274	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000HE-4TG144C	85 °C	0 °C	Surface Mount	1.14 V	1.26 V	540	144-LQFP	20 mm	144-TQFP	20 mm	4320	114	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000HE-5FG484C	85 °C	0 °C	Surface Mount	1.14 V	1.26 V	540	484-BBGA	23 mm	484-FBGA	23 mm	4320	278	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000ZE-1FG484I	100 °C	-40 °C	Surface Mount	1.14 V	1.26 V	540	484-BBGA	23 mm	484-FBGA	23 mm	4320	278	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000HE-6TG144I	100 °C	-40 °C	Surface Mount	1.14 V	1.26 V	540	144-LQFP	20 mm	144-TQFP	20 mm	4320	114	94208 bits
Lattice Semiconductor Corporation LCMXO2-4000HE-5BG332I	100 °C	-40 °C	Surface Mount	1.14 V	1.26 V	540	332-FBGA	17 mm	332-CABGA	17 mm	4320	274	94208 bits
