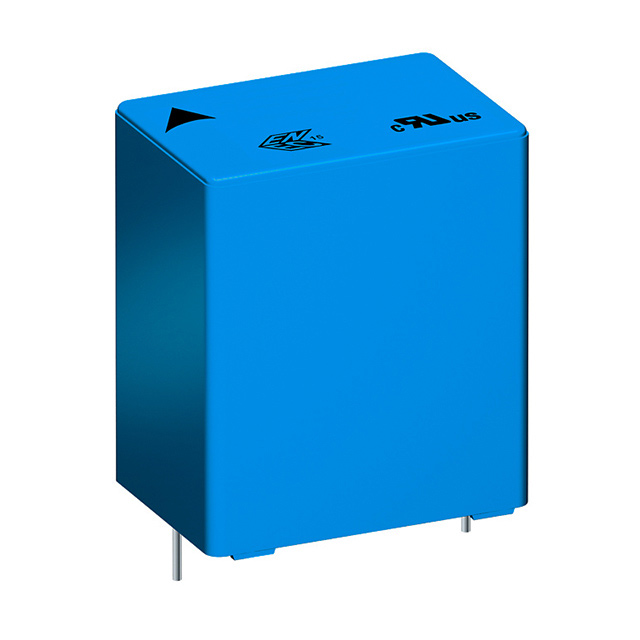

Specification	B32924H3475M

Applications	EMI, Automotive, RFI Suppression
Capacitance	4.7 µF
Dielectric Material	Metallized, Polypropylene (PP)
Features	85C/85% Humidity, 85% Humidity, 85C Humidity
Height - Seated (Max)	1.437 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension Length	1.24 in
Size / Dimension Width	0.866 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	305 V
Voltage Rating - DC	630 V
