K1137081
ActiveTE Connectivity AMP Connectors
SWITCH SELECT 2POS SPST 400A 32V
K1137081
ActiveTE Connectivity AMP Connectors
SWITCH SELECT 2POS SPST 400A 32V
Description
General part information
K1137081

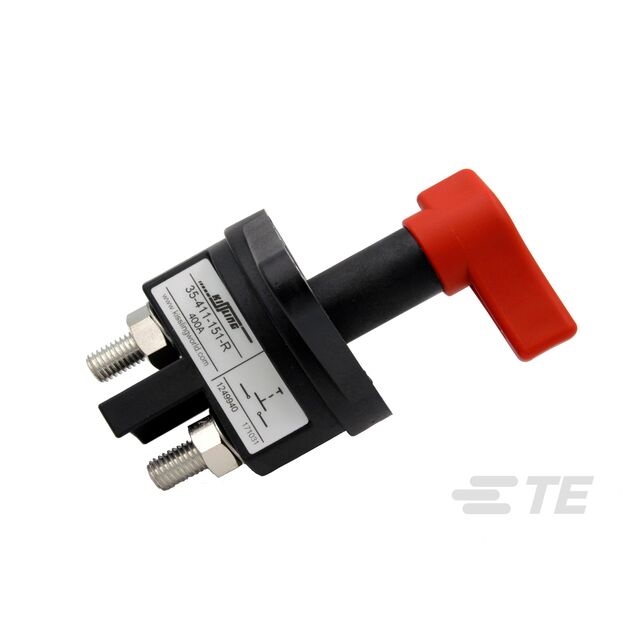

Selector Switch 2 Position SPST 400A (DC) Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | K1137081 |
|---|---|
| Circuit | SPST |
| Current Rating | 400 A |
| Depth Behind Flange | 67 mm |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Switch Function | On-Off |
| Termination Style | Stud |
| Type | Battery Disconnect |
| Voltage Rating - DC | 32 V |
