1-2380312-2
ActiveTE Connectivity AMP Connectors

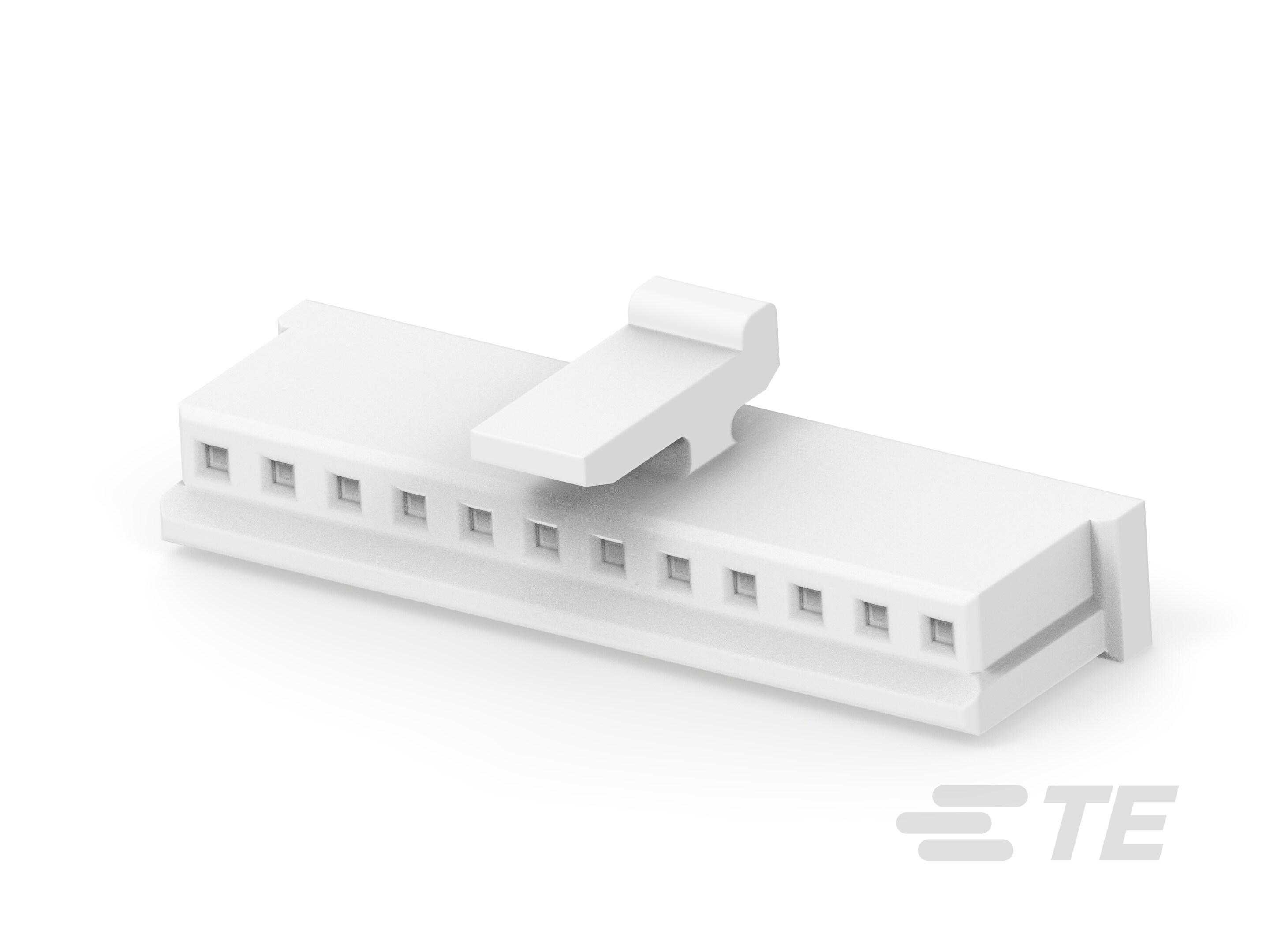

1.5P 12POS WTB CABLE HOUSING WITH LATCH
1-2380312-2
ActiveTE Connectivity AMP Connectors
1.5P 12POS WTB CABLE HOUSING WITH LATCH
Description
General part information
1-2380312-2
Housing, Receptacle, Wire-to-Board, 12 Position, 1.5 mm [.059 in] Centerline, Crimp, 1 Row, Natural, Wire & Cable, Power & Signal, HPI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2380312-2 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.059 in |
