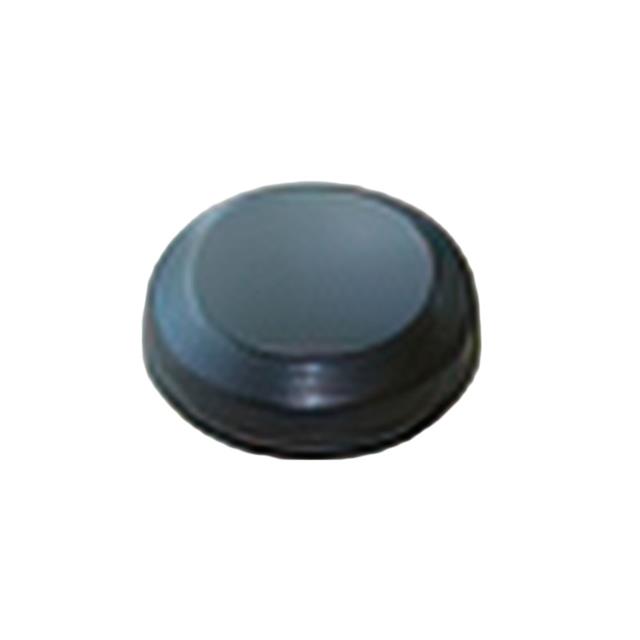

3997D-HR
ObsoleteMcGill Microwave Systems
RF ANT 1.575GHZ MODULE MCX SCREW
3997D-HR
ObsoleteMcGill Microwave Systems
RF ANT 1.575GHZ MODULE MCX SCREW
Description
General part information
3997D-HR
RF ANTENNA 2G, 3G, 5G, Cellular, GNSS, GPS, LTE Module MCX Stud, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 3997D-HR |
|---|---|
| Antenna Type | Module |
| Applications | Cellular, 2G, LTE, 3G, GNSS, GPS, 5G |
| Features | LNA, Filter |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.585 GHz |
| Frequency Range (Min) | 1.565 GHz |
| Gain | 3 dBic, -2 dBic |
| Height (Max) | 0.528 in |
| Mounting Type | Stud, Through Hole |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | MCX |
| VSWR | 1.9 |
