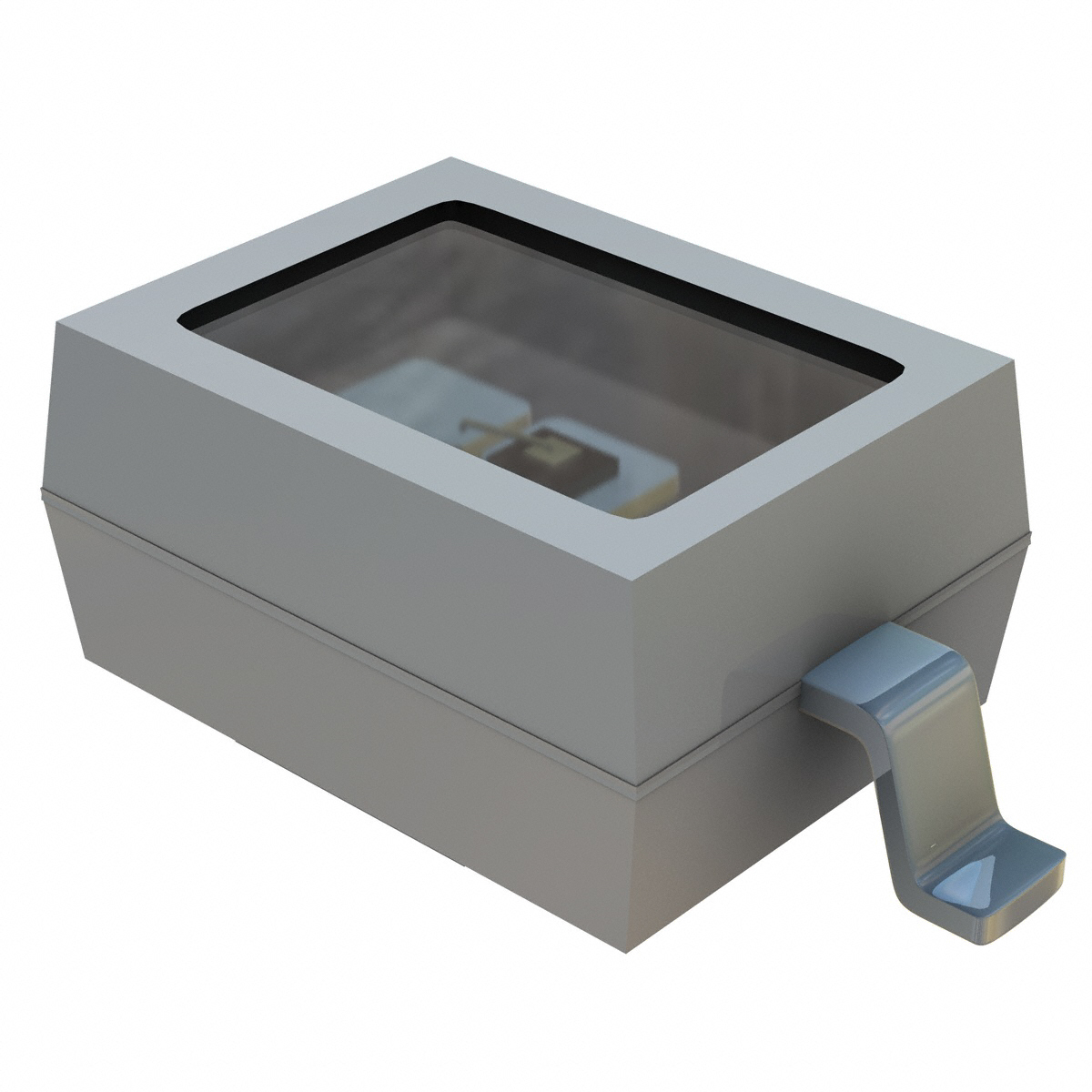

AA3022SGC-4.5SF

Active

Kingbright

LED GREEN CLEAR SMD

Search across all available documentation for this part.

Active

Kingbright

LED GREEN CLEAR SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED CLEAR SMD

Part	Supplier Device Package	Viewing Angle [custom]	Lens Size [y]	Lens Size [x]	Mounting Type	Lens Transparency	Wavelength - Dominant	Wavelength - Peak	Color	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Configuration	Package / Case	Lens Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Current - Test
Kingbright AA3022EC-4.5SF	SMD	90 °	1.7 mm	2.5 mm	Surface Mount	Clear	625 nm	627 nm	Red	1.65 mm	2.2 mm	3 mm	Rectangle with Flat Top	Standard	2-SMD, Gull Wing	Colorless	2 V	30 mcd	20 mA
Kingbright AA3022SRC-4.5SF	SMD	90 °	1.7 mm	2.5 mm	Surface Mount	Clear	640 nm	660 nm	Red	1.65 mm	2.2 mm	3 mm	Rectangle with Flat Top	Standard	2-SMD, Gull Wing	Colorless	1.85 V	150 mcd	20 mA
Kingbright AA3022YC-4.5SF	2-SMD	90 °	1.7 mm	2.5 mm	Surface Mount	Clear	588 nm	590 nm	Yellow	1.65 mm	2.2 mm	3 mm	Rectangle with Flat Top	Standard	2-SMD, Gull Wing	Colorless	2.1 V	15 mcd	20 mA
Kingbright AA3022SGC-4.5SF	SMD	90 °	1.7 mm	2.5 mm	Surface Mount	Clear	568 nm	565 nm	Green	1.65 mm	2.2 mm	3 mm	Rectangle with Flat Top	Standard	2-SMD, Gull Wing	Colorless	2.2 V	20 mcd	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green 568nm LED Indication - Discrete 2.2V 2-SMD, Gull Wing
