GSP2.9003.13

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	GSP2.9003.13

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder, Quick Connect - 0.189" (4.8mm)
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Termination	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]	Ingress Protection	Material Flammability Rating	Voltage Rating - Appliance Inlet	Approval Agency	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse	Connector Style	Filter Type	Current Rating - Appliance Inlet
SCHURTER Inc. GSP2.9003.13	Solder, Quick Connect - 0.189" (4.8mm)	Panel Mount, Flange, Through Hole, Right Angle	0.059 in	1.5 mm	IP40	UL94 V-0	250 VAC	CCC, cURus, ENEC	Male Blades, Receptacle	30.3 mm	22.5 mm		IEC 320-C14	Unfiltered - Commercial	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

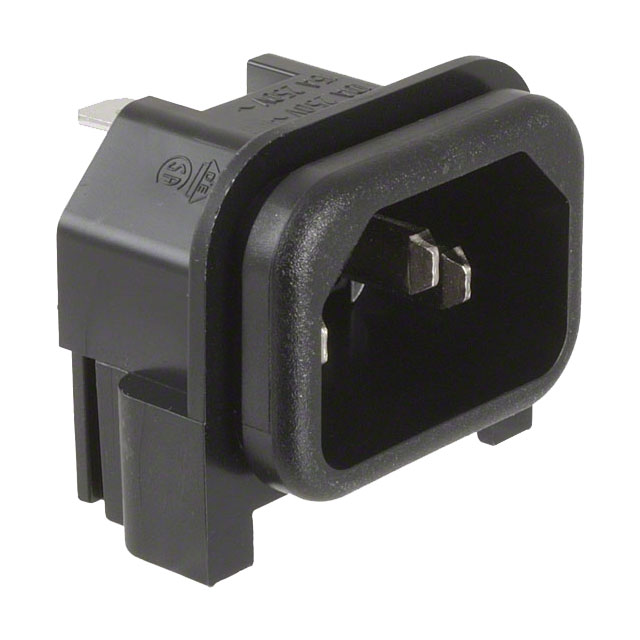

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
