PE3158LF-12
ActivePasternack
GR874 SEXLESS TO GR874 SEXLESS C
PE3158LF-12
ActivePasternack
GR874 SEXLESS TO GR874 SEXLESS C
Description
General part information
PE3158LF-12

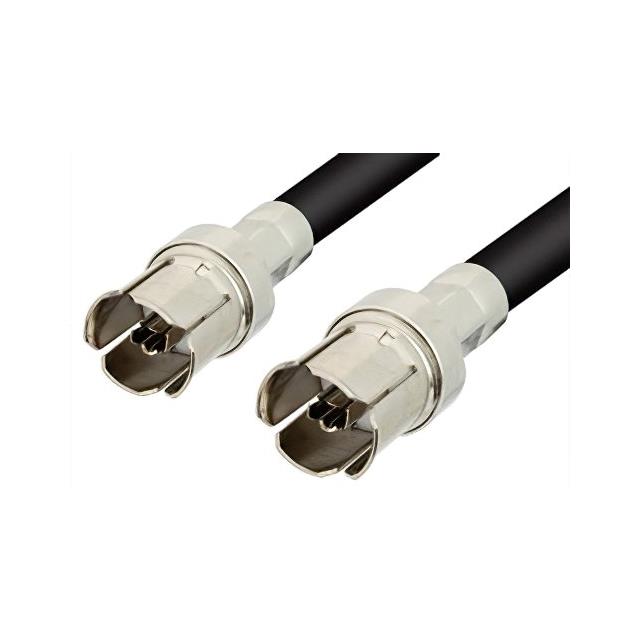

Cable Assembly Coaxial GR874 to GR874 RG-214 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3158LF-12 |
|---|---|
| 1st Connector | GR874 |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector | GR874 |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | GR874 to GR874 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
