SHUTTLE BOARD 3.0 BHI160B
ObsoleteBosch Sensortec
SHUTTLE BOARD 3.0 BHI160B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SHUTTLE BOARD 3.0 BHI160B
ObsoleteBosch Sensortec
SHUTTLE BOARD 3.0 BHI160B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SHUTTLE BOARD 3.0 BHI160B | BHI160 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Function | Magnetometer, Gyroscope, Accelerometer | Accelerometer, Gyroscope, Magnetometer |
| Interconnect System | Shuttle Board 3.0 Socket | Shuttle Board 3.0 Socket |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | I2C |
| Package / Case | - | 24-VFLGA Module |
| Primary Attributes | ±1000, ±16, ±125, ±2, ±2000, ±4, ±2500, ±500, ±250, ±8, ±1300 | ±1000, ±16, ±125, ±2, ±2000, ±4, ±2500, ±500, ±250, ±8, ±1300 |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Sensor Type | - | Accelerometer, Gyroscope, 6 Axis |
| Supplier Device Package | - | 24-LGA (3x3) |
| Type | Sensor | Sensor |
| Utilized IC / Part | BHI160B, BMM150 | BHI160, BHI160B, BMM150 |
BHI160 Series
IMU ACCEL/GYRO 3-AXIS I2C 24LGA
| Part | Output Type | Sensor Type | Supplier Device Package | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contents | Utilized IC / Part | Function | Type | Secondary Attributes | Primary Attributes | Interconnect System |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bosch Sensortec BHI160 | I2C | 6 Axis, Accelerometer, Gyroscope | 24-LGA (3x3) | 24-VFLGA Module | Surface Mount | 85 °C | -40 °C | |||||||
Bosch Sensortec BHI160-SHUTL | Board(s) | BHI160 | Accelerometer, Gyroscope | Sensor | ||||||||||
Bosch Sensortec BHI160B | I2C | 6 Axis, Accelerometer, Gyroscope | 24-LGA (3x3) | 24-VFLGA Module | Surface Mount | 85 °C | -40 °C | |||||||
Bosch Sensortec SHUTTLE BOARD 3.0 BHI160B | Board(s) | BHI160B, BMM150 | Accelerometer, Gyroscope, Magnetometer | Sensor | I2C Interface(s) | ±1000, ±125, ±1300, ±16, ±2, ±2000, ±250, ±2500, ±4, ±500, ±8 | Shuttle Board 3.0 Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BHI160 Series

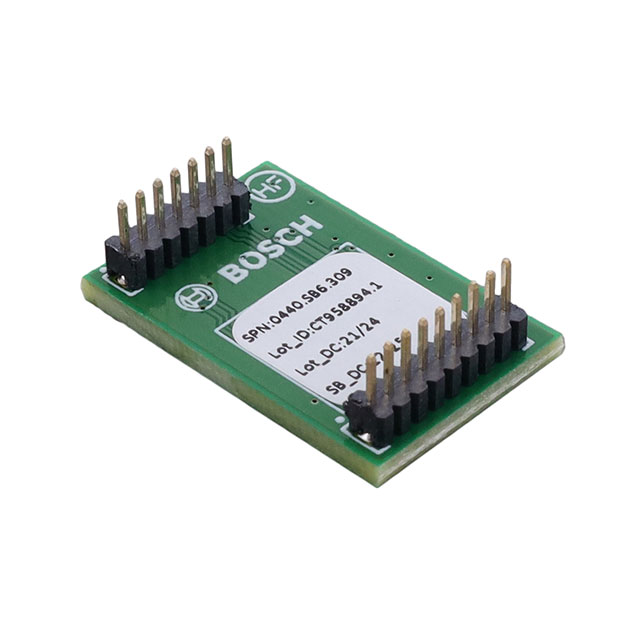

BHI160B, BMM150 Accelerometer, Gyroscope, Magnetometer Sensor Platform Evaluation Expansion Board
