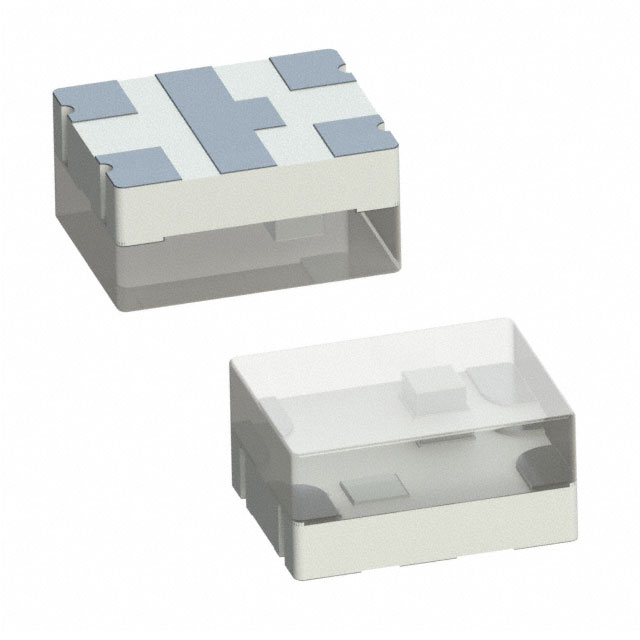

CL-165HR/YG-D-T
ActiveCitizen Finedevice Co Ltd
LED GREEN/RED SMD
Deep-Dive with AI
Search across all available documentation for this part.
CL-165HR/YG-D-T
ActiveCitizen Finedevice Co Ltd
LED GREEN/RED SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-165HR/YG-D-T |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1.2 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 18 mcd, 23 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1.5 mm |
| Size / Dimension [y] | 1.2 mm |
| Voltage - Forward (Vf) (Typ) | 1.8 V, 2.2 V |
| Wavelength - Dominant | 575 nm, 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 3000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.12 | |||
| 21000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 75000 | $ 0.11 | |||
Description
General part information
CL-165 Series
Green, Red 575nm Green, 640nm Red LED Indication - Discrete 2.2V Green, 1.8V Red 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
