2952855

Active

Phoenix Contact

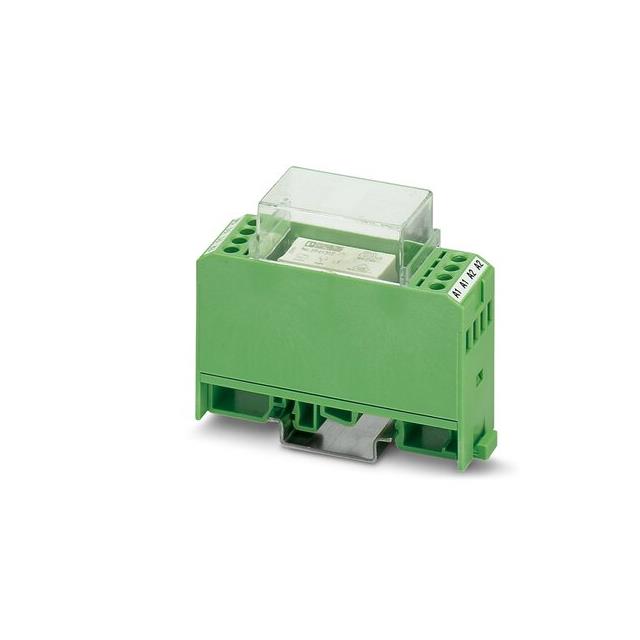

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 230V

Part	Switching Voltage	Coil Type	Load - Max Switching	Mounting Type	Operate Time	Coil Voltage	Relay Type	Contact Form	Coil Resistance	Features	Coil Current	Approval Agency	Contact Rating (Current)	Contact Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Release Time
Phoenix Contact 2952855	250 VAC, 250 VDC	Non Latching	144 W, 1500 VA	DIN Rail	8 ms	230 VAC	General Purpose	SPDT (1 Form C)	46 kOhms	Socket Included, Varistor	5 mA	EAC	6 A	Silver Nickel (AgNi)	Screw Terminal	50 °C	-20 C	10 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 120.10

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail

Technical documentation and resources
