PE-53652NL
ActivePulse Electronics
FIXED IND 9UH 5.5A 28 MOHM SMD
PE-53652NL
ActivePulse Electronics
FIXED IND 9UH 5.5A 28 MOHM SMD
Description
General part information
PE-53652NL

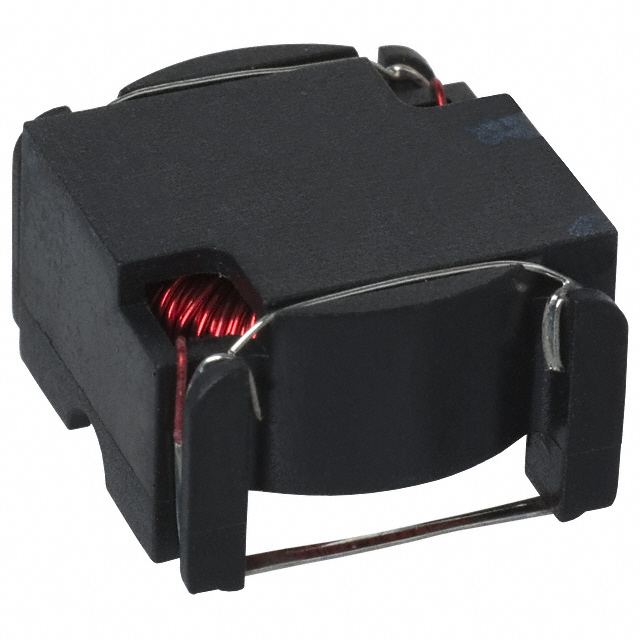

9 µH Unshielded Toroidal Inductor 5.5 A 28mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53652NL |
|---|---|
| Current Rating | 5.5 A |
| DC Resistance (DCR) (Max) | 28 mOhm |
| Height - Seated (Max) | 0.39 in |
| Inductance | 9 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.62 in |
| Size / Dimension Width | 0.6 in |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
