ET60T-D02-3-08-D02-L-R1-S

Active

Samtec Inc.

CONN SKT PWR SIGNAL COMBO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsET60S Series Other Related Documents 03 Datasheet +2

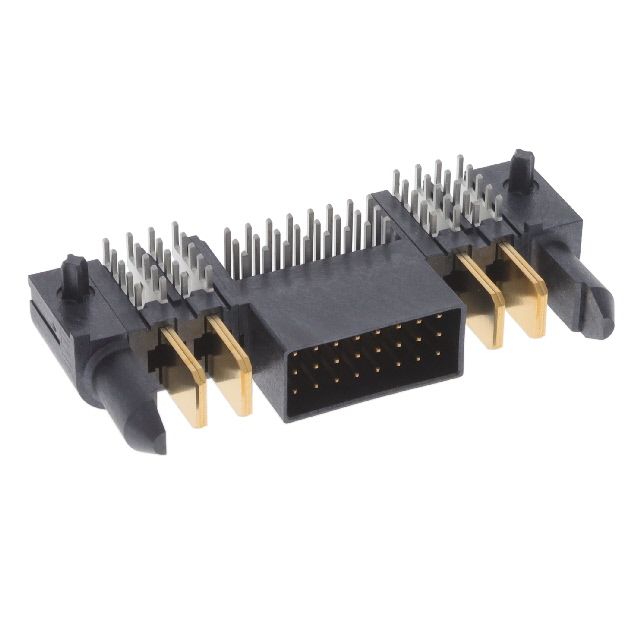

ET60T-D02-3-08-D02-L-R1-S

Active

Samtec Inc.

CONN SKT PWR SIGNAL COMBO

Deep-Dive with AI

DocumentsET60S Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ET60T-D02-3-08-D02-L-R1-S

Color	Black
Connector Style	EXTreme Ten60Power
Connector Type	Header, Male Pins and Blades
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Layout, Typical [custom]	24
Contact Layout, Typical [custom]	4
Features	Guide Pin, Board Guide
Mounting Type	Through Hole, Right Angle
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

ET60T-D02 Series

Power to the Board EXTreme Ten60Power 60 Amp Signal/Power Combo

Part	Contact Finish	Number of Positions	Features	Mounting Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Connector Style	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Current Rating (Amps)	Contact Layout, Typical
Samtec Inc. ET60T-D02-3-08-D02-L-R1-S	Gold	28	Board Guide Guide Pin	Through Hole Right Angle	24	4	10 Áin	0.25 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	2.54 mm	0.1 in	Header Male Pins and Blades	3
Samtec Inc. ET60T-D02-3-08-D06-S-R1-S	Gold		Board Guide Guide Pin	Through Hole Right Angle	24	8	30 Áin	0.76 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	2.54 mm	0.1 in	Header Male Pins and Blades		0.044 A
Samtec Inc. ET60T-D02-0-00-000-S-R1-S	Gold	2	Board Guide Guide Pin	Through Hole Right Angle			30 Áin	0.76 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	5.5 mm	0.217 in	Header Male Blades		0.044 A	2 Power
Samtec Inc. ET60T-D02-3-08-000-S-R1-S-H	Gold	26	Board Guide Guide Pin	Through Hole Right Angle	24	2	30 Áin	0.76 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	2.54 mm	0.1 in	Header Male Pins and Blades		0.044 A
Samtec Inc. ET60T-D02-3-08-000-L-R1-S	Gold	26	Board Guide Guide Pin	Through Hole Right Angle	24	2	10 Áin	0.25 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	2.54 mm	0.1 in	Header Male Pins and Blades	3
Samtec Inc. ET60T-D02-3-08-D03-L-R1-S-H	Gold	29	Board Guide Guide Pin	Through Hole Right Angle	24	5	10 Áin	0.25 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	2.54 mm	0.1 in	Header Male Pins and Blades		0.044 A
Samtec Inc. ET60T-D02-3-08-D04-L-R1-S-H	Gold	30	Board Guide Guide Pin	Through Hole Right Angle	24	6	10 Áin	0.25 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	2.54 mm	0.1 in	Header Male Pins and Blades		0.044 A
Samtec Inc. ET60T-D02-3-08-000-L-R1-S-H	Gold	26	Board Guide Guide Pin	Through Hole Right Angle	24	2	10 Áin	0.25 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder			Header Male Pins and Blades	3
Samtec Inc. ET60T-D02-0-00-D06-L-R1-S	Gold	8	Board Guide Guide Pin	Through Hole Right Angle			10 Áin	0.25 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	5.5 mm	0.217 in	Header Male Blades		0.044 A	8 Power
Samtec Inc. ET60T-D02-3-08-D03-L-R1-S	Gold	29	Board Guide Guide Pin	Through Hole Right Angle	24	5	10 Áin	0.25 Ám	250 VDC	EXTreme Ten60Power	Black	-40 °C	105 ░C	All	Solder	2.54 mm	0.1 in	Header Male Pins and Blades		0.044 A
