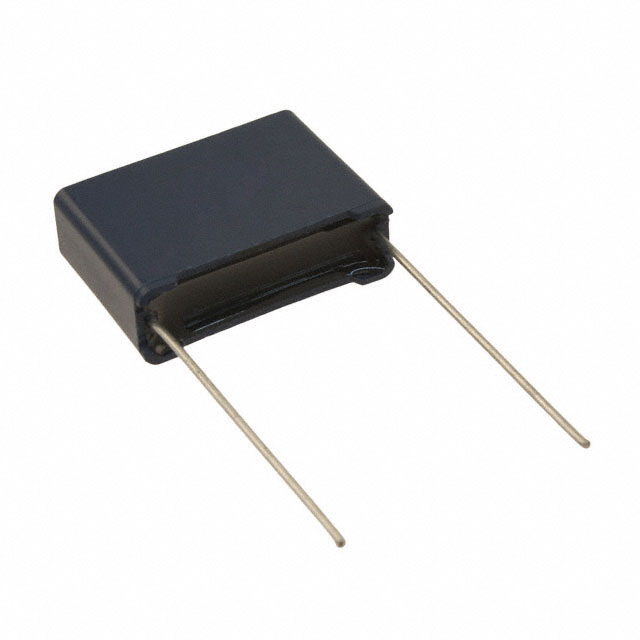

158X473
ObsoleteCornell Dubilier Knowles
CAP FILM 0.047UF 20% 275VAC RAD
158X473
ObsoleteCornell Dubilier Knowles
CAP FILM 0.047UF 20% 275VAC RAD
Description
General part information
158X473
0.047 µF Film Capacitor 275V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 158X473 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 47 nF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.512 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Size / Dimension Length | 0.669 in |
| Size / Dimension Width | 0.217 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 275 VAC |
