Description
General part information
MDT0280A1IH-MULTI

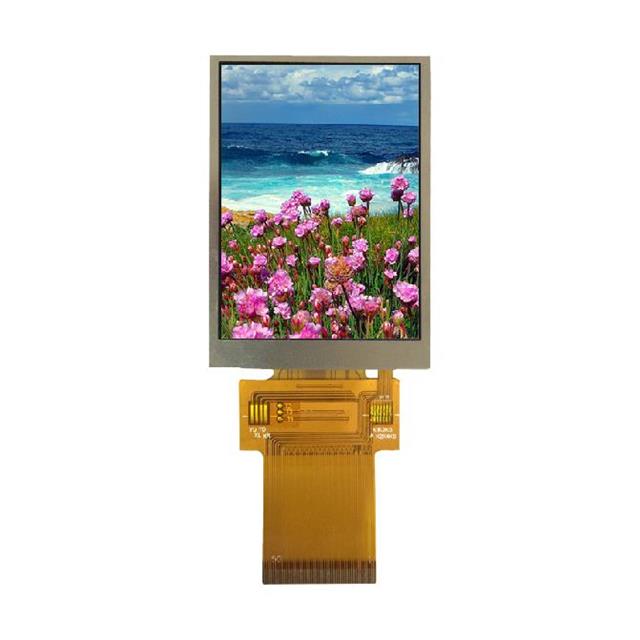

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 2.8" (71.12mm) 240 x 320
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0280A1IH-MULTI |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ST7789V |
| Diagonal Screen Size | 2.8 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 240 pixels |
| Dot Pixels (Vertical) | 320 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Multi |
| Touchscreen | Non-Touch |
| Viewing Area Height | 57.6 mm |
| Viewing Area Width | 43.2 mm |
