7032-9433
ActiveMcGill Microwave Systems

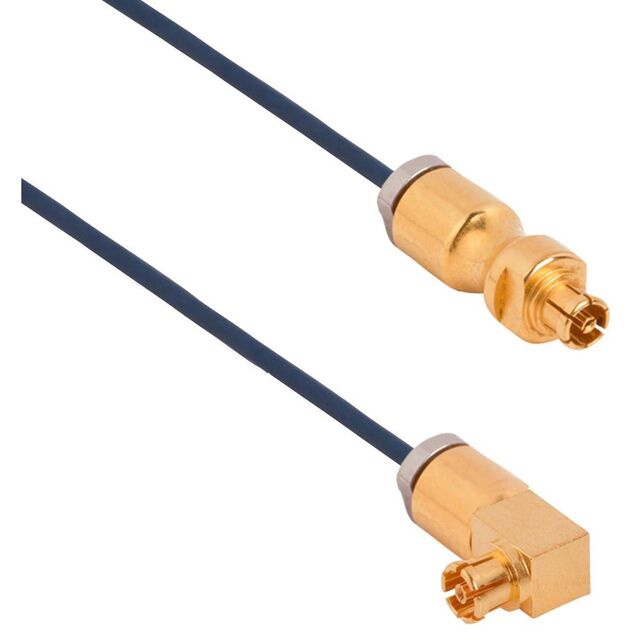

RF / COAXIAL CABLE ASSEMBLY, 90° SMPM JACK TO SMPM JACK, 0.047" SUPERFLEX, 50 OHM, 3 ", 76.2 MM
7032-9433
ActiveMcGill Microwave Systems
RF / COAXIAL CABLE ASSEMBLY, 90° SMPM JACK TO SMPM JACK, 0.047" SUPERFLEX, 50 OHM, 3 ", 76.2 MM
Description
General part information
7032-9433
Cable Assembly Coaxial SMPM to SMPM 0.047" Flexible Cable 3.000" (76.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7032-9433 |
|---|---|
| 1st Connector | SMPM Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, SMPM Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.047 " |
| Cable Outer Diameter | 0.047 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.047, 0.047 " |
| Color | Blue |
| Frequency - Max | 33 GHz |
| Length | 3 " |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMPM |
