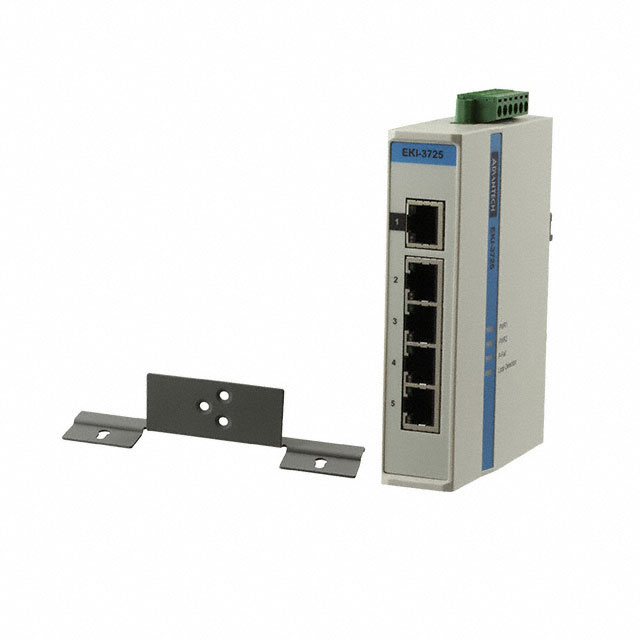

EKI-3725-AE
ObsoleteAdvantech Corporation
NETWORK SWITCH-UNMANAGED 5 PORT
EKI-3725-AE
ObsoleteAdvantech Corporation
NETWORK SWITCH-UNMANAGED 5 PORT
Description
General part information
EKI-3725-AE
Network Switch - Unmanaged 5 Ports IP40
Technical Specifications
Parameters and characteristics for this part
| Specification | EKI-3725-AE |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45 |
| Copper Ports | 5 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Ingress Protection | IP40 |
| Mounting Type | DIN Rail |
| Number of Ports | 5 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (DC) Maximum | 48 V |
| Voltage - Input (DC) Minimum | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
