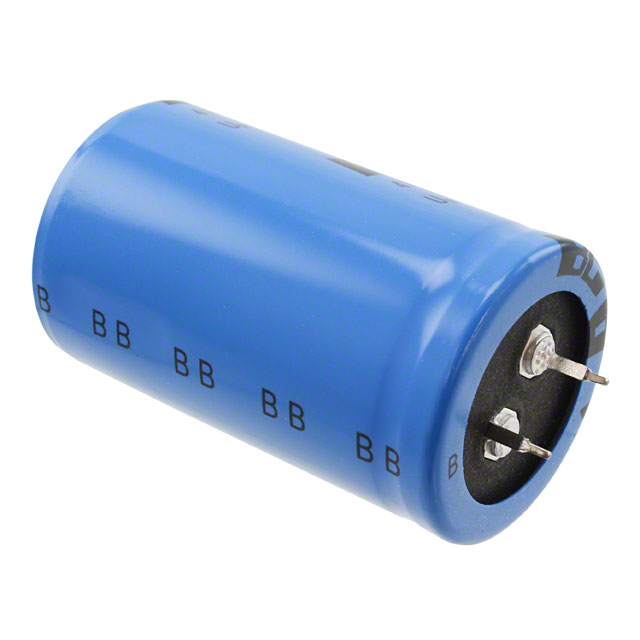

MAL215749271E3
ActiveVishay Dale
ELECTROLYTIC CAPACITOR, SNAP-IN, 157 PUM-SI SERIES, 270 F, 20%, 500 V, 35 MM, 0.534 OHM
MAL215749271E3
ActiveVishay Dale
ELECTROLYTIC CAPACITOR, SNAP-IN, 157 PUM-SI SERIES, 270 F, 20%, 500 V, 35 MM, 0.534 OHM
Description
General part information
MAL215749271E3
270 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 670mOhm @ 100Hz 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL215749271E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 270 µF |
| ESR (Equivalent Series Resistance) | 670 mOhm |
| Height - Seated (Max) | 1.457 in |
| Impedance | 570 mOhms |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 500 V |
