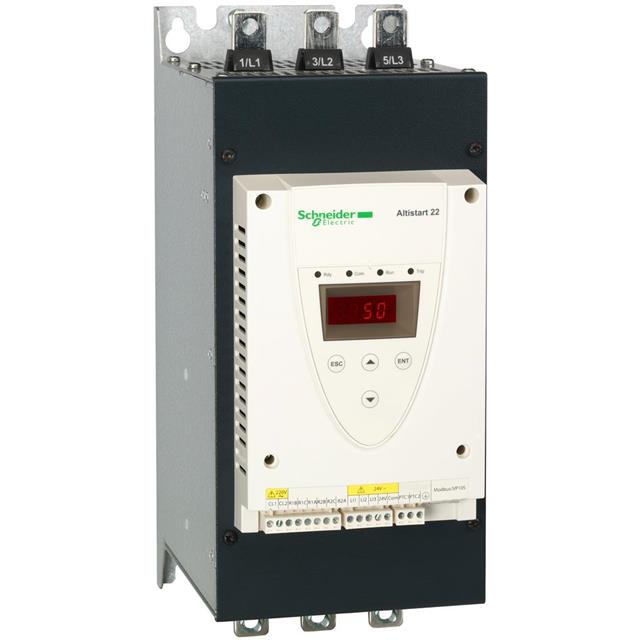

ATS22C14Q
ObsoleteSCHNEIDER ELECTRIC
SOFT STARTER-ATS22-CONTROL 220V-
ATS22C14Q
ObsoleteSCHNEIDER ELECTRIC
SOFT STARTER-ATS22-CONTROL 220V-
Description
General part information
ATS22C14Q
Soft Start / Stop 195V ~ 484V Supply 140A 230 ~ 440V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS22C14Q |
|---|---|
| Control / Drive Type | Soft Start, Stop |
| Current - Output | 140 A |
| Interface | RS-485 |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Module |
| Voltage - Load (Max) | 440 V |
| Voltage - Load (Min) | 230 V |
| Voltage - Supply (Maximum) | 484 V |
| Voltage - Supply (Minimum) | 195 V |
| Wattage - Load | 750 W |
