Specification	FN3288-80-34-C35-R65

Applications	Inverters, Power Drive Systems
Configuration	Two Stage
Current	80 A
Filter Subtype	Delta
Filter Type	Three Phase
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	0 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Termination Style	Terminal Block
Voltage - Rated AC	530V, 305V
Voltage - Rated AC (Phase to Ground/Neutral)	305 V
Voltage - Rated AC (Phase to Phase)	530 V

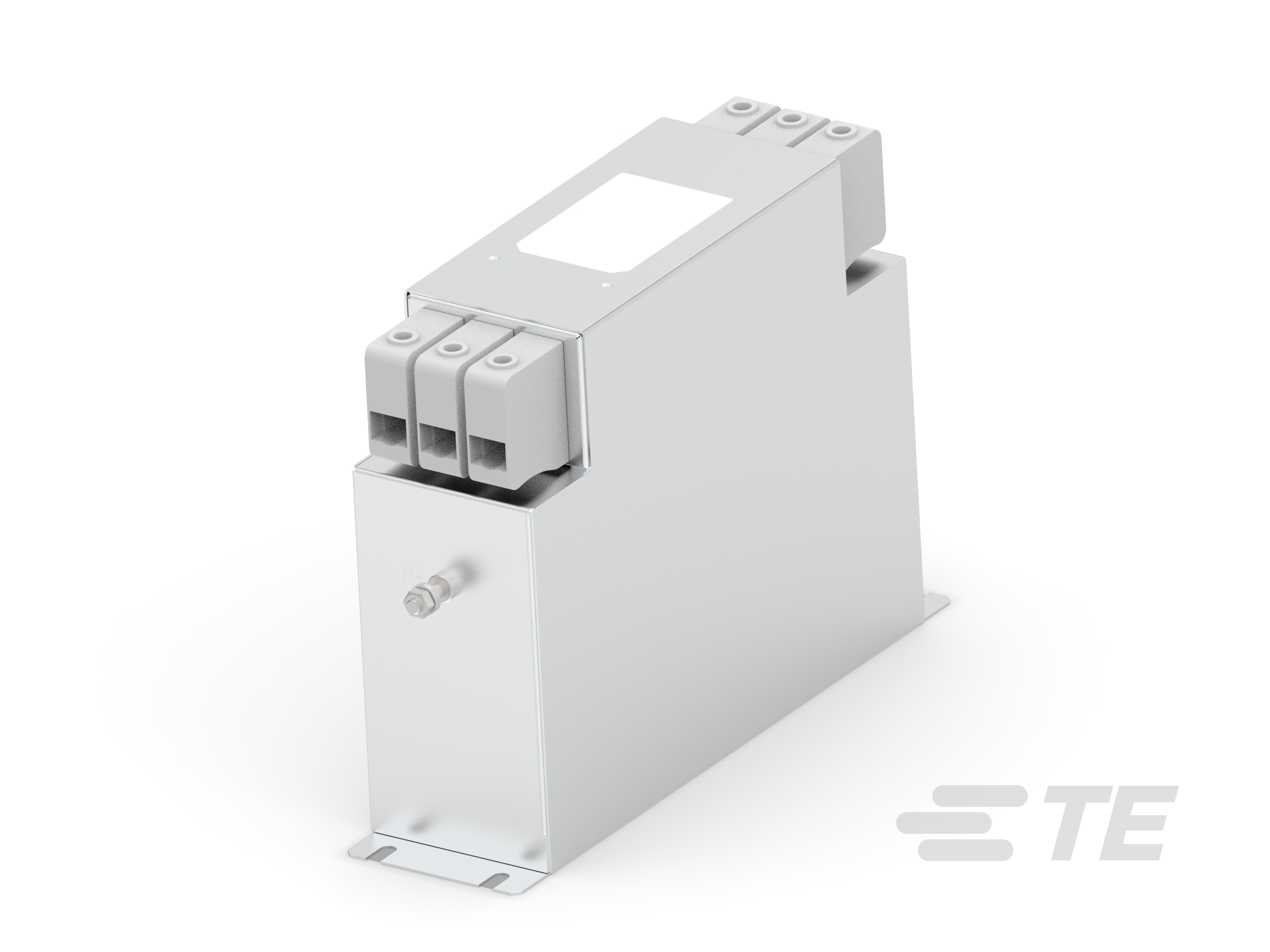

Schaffner FN3288 Series

...

Part	Filter Subtype	Filter Type	Applications	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Operating (Max)	Voltage - Rated AC (Phase to Phase)	Termination Style	Mounting Type	Current	Voltage - Rated AC	Voltage - Rated AC
TE Connectivity AMP Connectors FN3288-40-33-C21-R65	Delta	Three Phase	Inverters Power Drive Systems	CE ENEC UR	305 V	Two Stage	100 °C	-40 °C	60 Hz	530 V	Terminal Block	Chassis Mount	40 A	305V 530V
TE Connectivity AMP Connectors FN3288HVIT-16-44-C43-R60	Delta	Three Phase	Inverters Power Drive Systems			Two Stage	100 °C	-40 °C	60 Hz		Terminal Block	Chassis Mount	16 A		760 V
TE Connectivity AMP Connectors FN3288HVIT-10-44-C42-R60	Delta	Three Phase	Inverters Power Drive Systems			Two Stage	100 °C	-40 °C	60 Hz		Terminal Block	Chassis Mount	10 A		760 V
TE Connectivity AMP Connectors FN3288HV-20-33-C36-R65	Delta	Three Phase	Inverters Power Drive Systems		440 V	Two Stage	100 °C	-40 °C	60 Hz	760 V	Terminal Block	Chassis Mount	20 A
TE Connectivity AMP Connectors FN3288HV-25-33-C36-R65	Delta	Three Phase	Inverters Power Drive Systems		440 V	Two Stage	100 °C	-40 °C	60 Hz	760 V	Terminal Block	Chassis Mount	25 A
TE Connectivity AMP Connectors FN3288HVIT-10-44-C42-R60	Delta	Three Phase	Inverters Power Drive Systems			Two Stage	100 °C	-40 °C	60 Hz		Terminal Block	Chassis Mount	10 A		760 V
TE Connectivity AMP Connectors FN3288HVIT-50-53-C43-R60	Delta	Three Phase	Inverters Power Drive Systems			Two Stage	100 °C	-40 °C	60 Hz		Terminal Block	Chassis Mount	50 A		760 V
TE Connectivity AMP Connectors FN3288HVIT-16-44-C43-R60	Delta	Three Phase	Inverters Power Drive Systems			Two Stage	100 °C	-40 °C	60 Hz		Terminal Block	Chassis Mount	16 A		760 V
TE Connectivity AMP Connectors FN3288HVIT-50-53-C43-R60	Delta	Three Phase	Inverters Power Drive Systems			Two Stage	100 °C	-40 °C	60 Hz		Terminal Block	Chassis Mount	50 A		760 V
TE Connectivity AMP Connectors FN3288HV-20-33-C36-R65	Delta	Three Phase	Inverters Power Drive Systems		440 V	Two Stage	100 °C	-40 °C	60 Hz	760 V	Terminal Block	Chassis Mount	20 A
