B82133A5302M000
ObsoleteEPCOS - TDK Electronics
FIXED IND 10UH 3A 77 MOHM TH
B82133A5302M000
ObsoleteEPCOS - TDK Electronics
FIXED IND 10UH 3A 77 MOHM TH
Description
General part information
B82133A5302M000

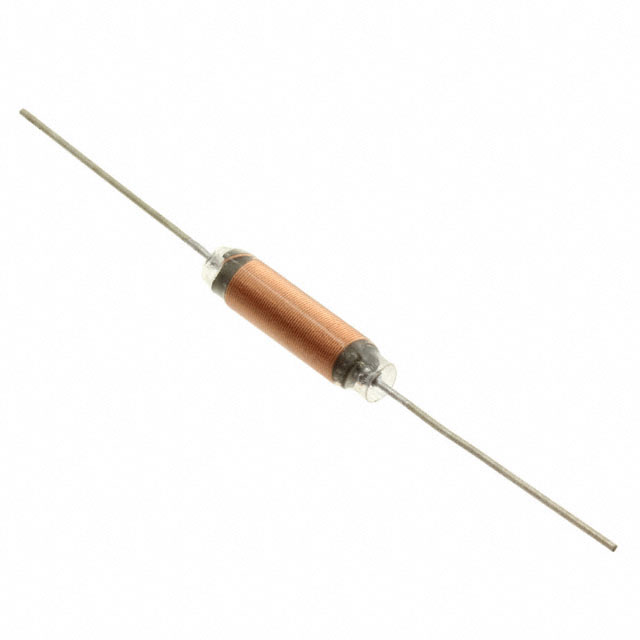

10 µH Unshielded Drum Core, Wirewound Inductor 3 A 77mOhm Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82133A5302M000 |
|---|---|
| Current Rating | 3 A |
| DC Resistance (DCR) | 77 mOhm |
| Frequency - Self Resonant | 69 MHz |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.295 in |
| Size / Dimension Length | 0.984 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
