CSA-M1240M1246
ActiveBANNER ENGINEERING

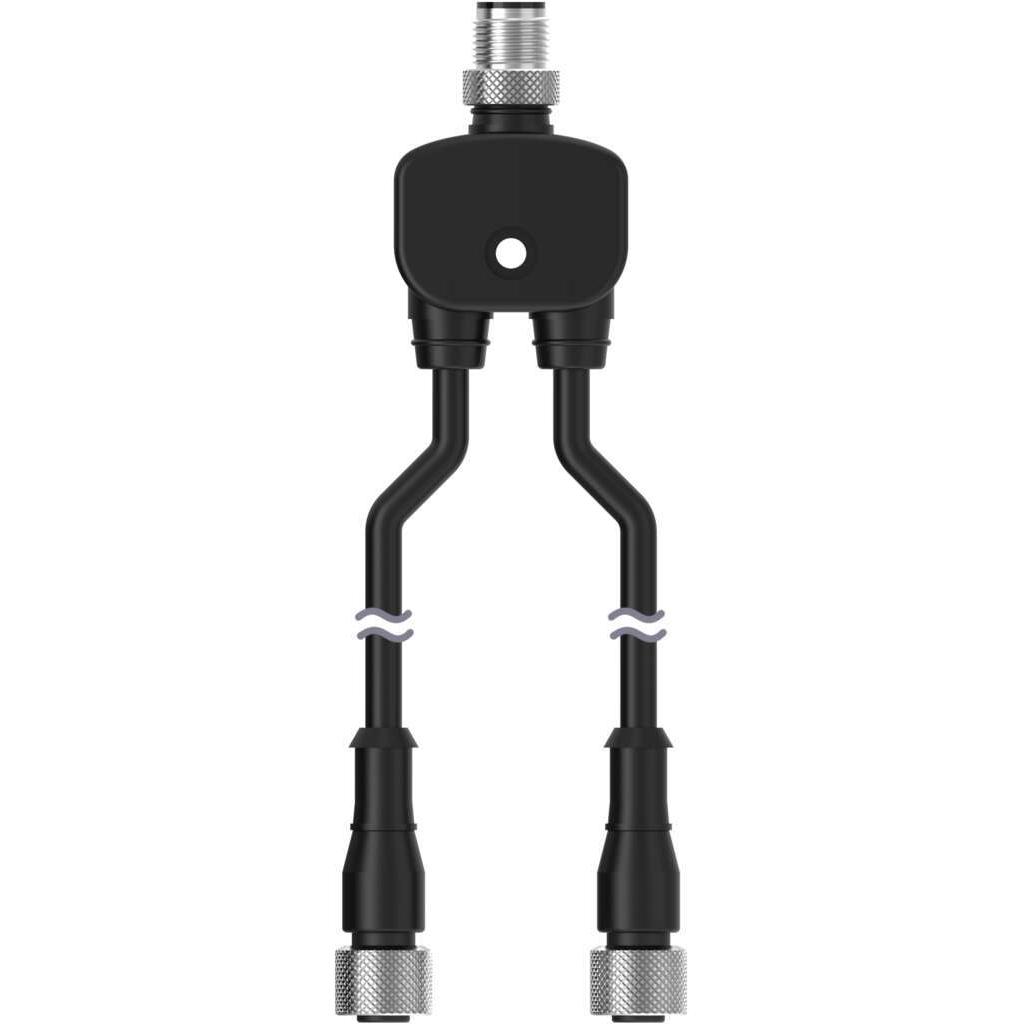

SPLITTER CORDSET; M12 4-PIN MALE
CSA-M1240M1246
ActiveBANNER ENGINEERING
SPLITTER CORDSET; M12 4-PIN MALE
Description
General part information
CSA-M1240M1246
SPLITTER CORDSET; M12 4-PIN MALE
Technical Specifications
Parameters and characteristics for this part
| Specification | CSA-M1240M1246 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Count | 2 pcs |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Gender (Count) | 2 |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert (Code) | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Y-Adapter on One End |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 6.56 ft |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
