1437720-6
ActiveTE Connectivity AMP Connectors
T01-0580-S07-FEMALE REC PANEL MNT SOLDER
1437720-6
ActiveTE Connectivity AMP Connectors
T01-0580-S07-FEMALE REC PANEL MNT SOLDER
Description
General part information
1437720-6

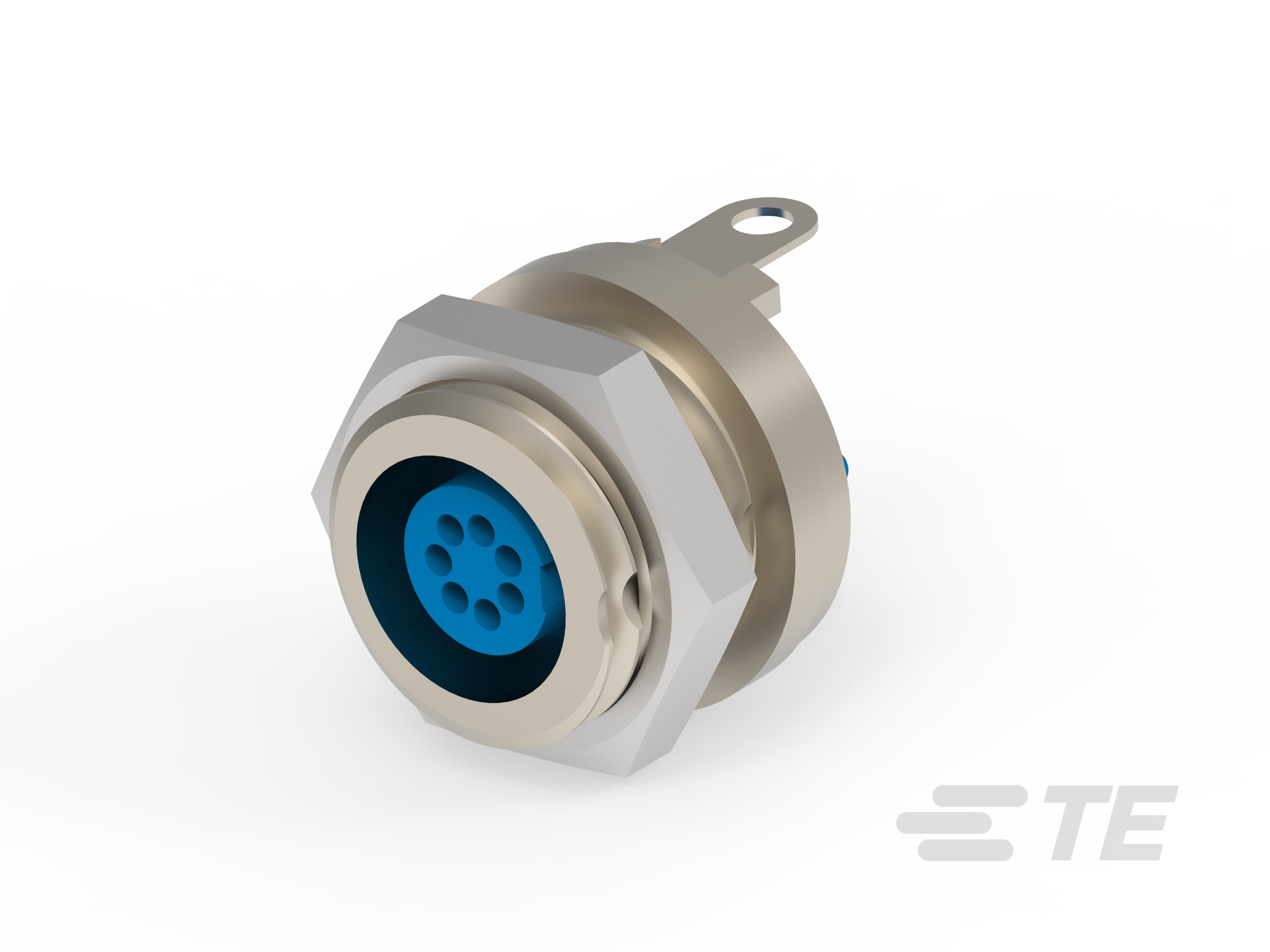

7 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, CuZn, Triad 01 Panel/PCB Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 1437720-6 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 1 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 7 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Tribor |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 60 V |
