FIRCH-1-B
ActiveTriad Magnetics
FIXED IND 2.54UH 11.6A 5.5 MOHM
FIRCH-1-B
ActiveTriad Magnetics
FIXED IND 2.54UH 11.6A 5.5 MOHM
Description
General part information
FIRCH-1-B

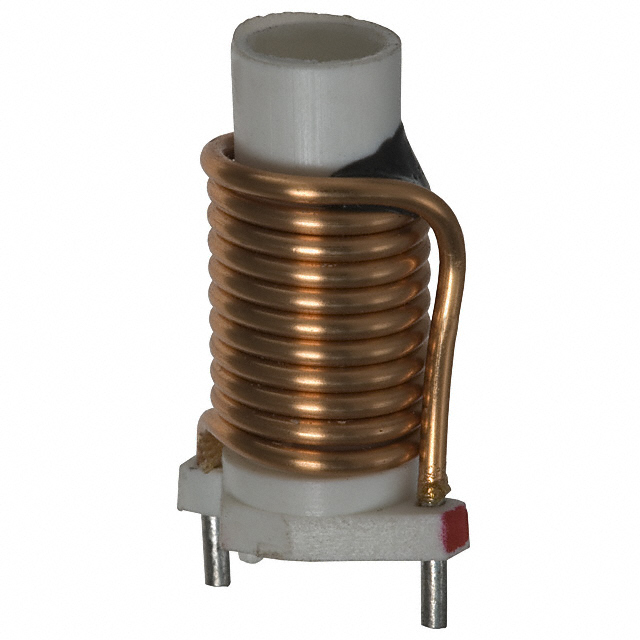

2.54 µH Unshielded Drum Core, Wirewound Inductor 11.6 A 5.5mOhm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | FIRCH-1-B |
|---|---|
| Current Rating | 11.6 A |
| DC Resistance (DCR) (Max) | 5.5 mOhm |
| Height - Seated (Max) | 1.05 in |
| Inductance | 2.54 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Length | 0.63 in |
| Size / Dimension Width | 0.465 in |
| Tolerance | 15 % |
| Type | Drum Core, Wirewound |
