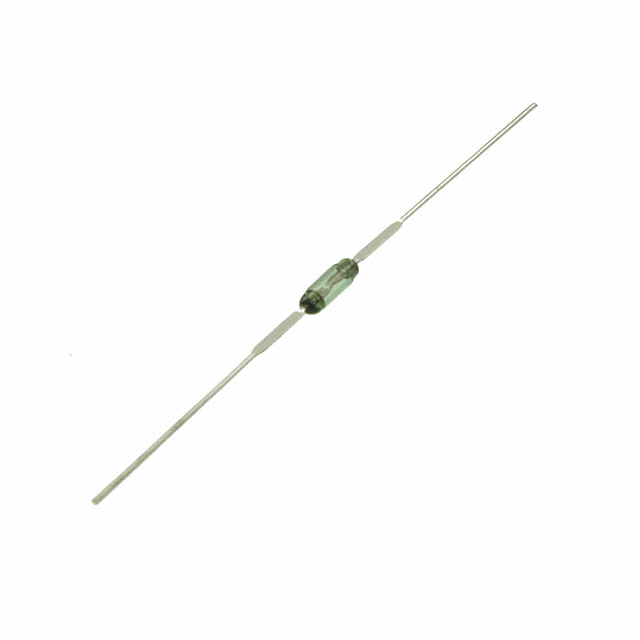

RI-80SMD-1015-FL
ActiveComus International
SWITCH REED SPST-NO 250MA 140V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RI-80SMD-1015-FL
ActiveComus International
SWITCH REED SPST-NO 250MA 140V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RI-80SMD-1015-FL |
|---|---|
| Capacitance | 0.45 pF |
| Circuit | SPST-NO |
| Current - Carry | 500 mA |
| Current - Switching | 250 mA, 350 mA |
| Length - Overall [x] | 46 mm |
| Length - Overall [x] | 1.811 in |
| Mounting Type | Surface Mount |
| Operate Range [Max] | 15 AT |
| Operate Range [Min] | 10 |
| Operate Time | 0.35 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Power - Rated | 5 W |
| Release Range [Max] | 13 AT |
| Release Range [Min] | 4 AT |
| Release Time | 0.02 ms |
| Termination Style | Axial, Flat |
| Type | Glass Body Reed |
| Voltage - Switching AC [custom] | 140 V |
| Voltage - Switching DC | 175 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 1.61 | |
Description
General part information
RI-80SM Series
Glass Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 5W 250mA (AC), 350mA (DC) 140 V Surface Mount
