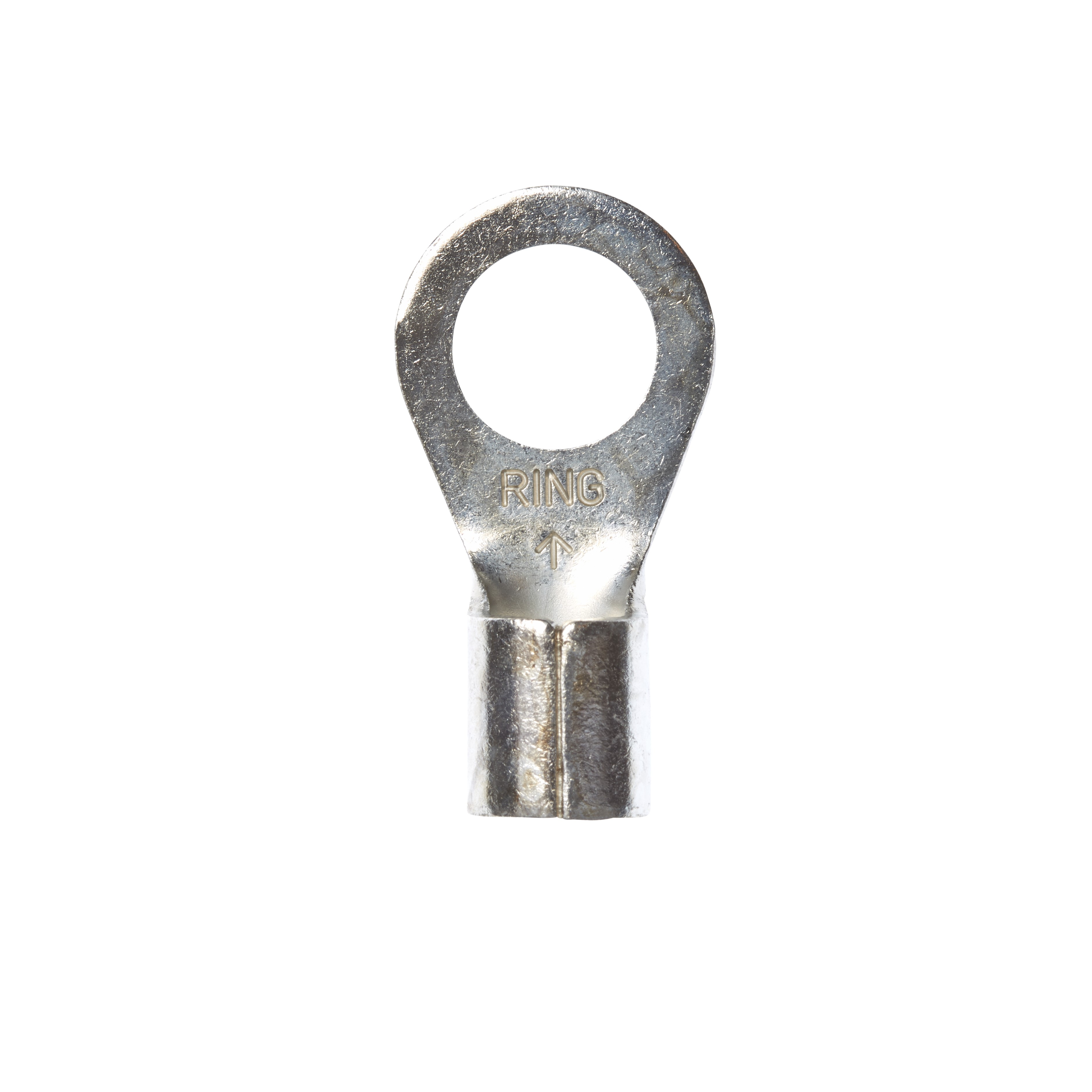

M6-38RK
Active3M Electronic Specialty
CONN RING CIRC 6AWG #3/8 CRIMP
M6-38RK
Active3M Electronic Specialty
CONN RING CIRC 6AWG #3/8 CRIMP
Description
General part information
M6-38RK
CONN RING CIRC 6AWG #3/8 CRIMP
Technical Specifications
Parameters and characteristics for this part
| Specification | M6-38RK |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 1.22 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.375 in |
| Stud/Tab Size | 3 Stud, 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.05 in |
| Width - Outer Edges | 0.63 in |
| Wire Gauge | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
