321867-3
ActiveTE Connectivity AMP Connectors
STRA,RT,1/0,5/16-M8,AU
321867-3
ActiveTE Connectivity AMP Connectors
STRA,RT,1/0,5/16-M8,AU
Description
General part information
321867-3

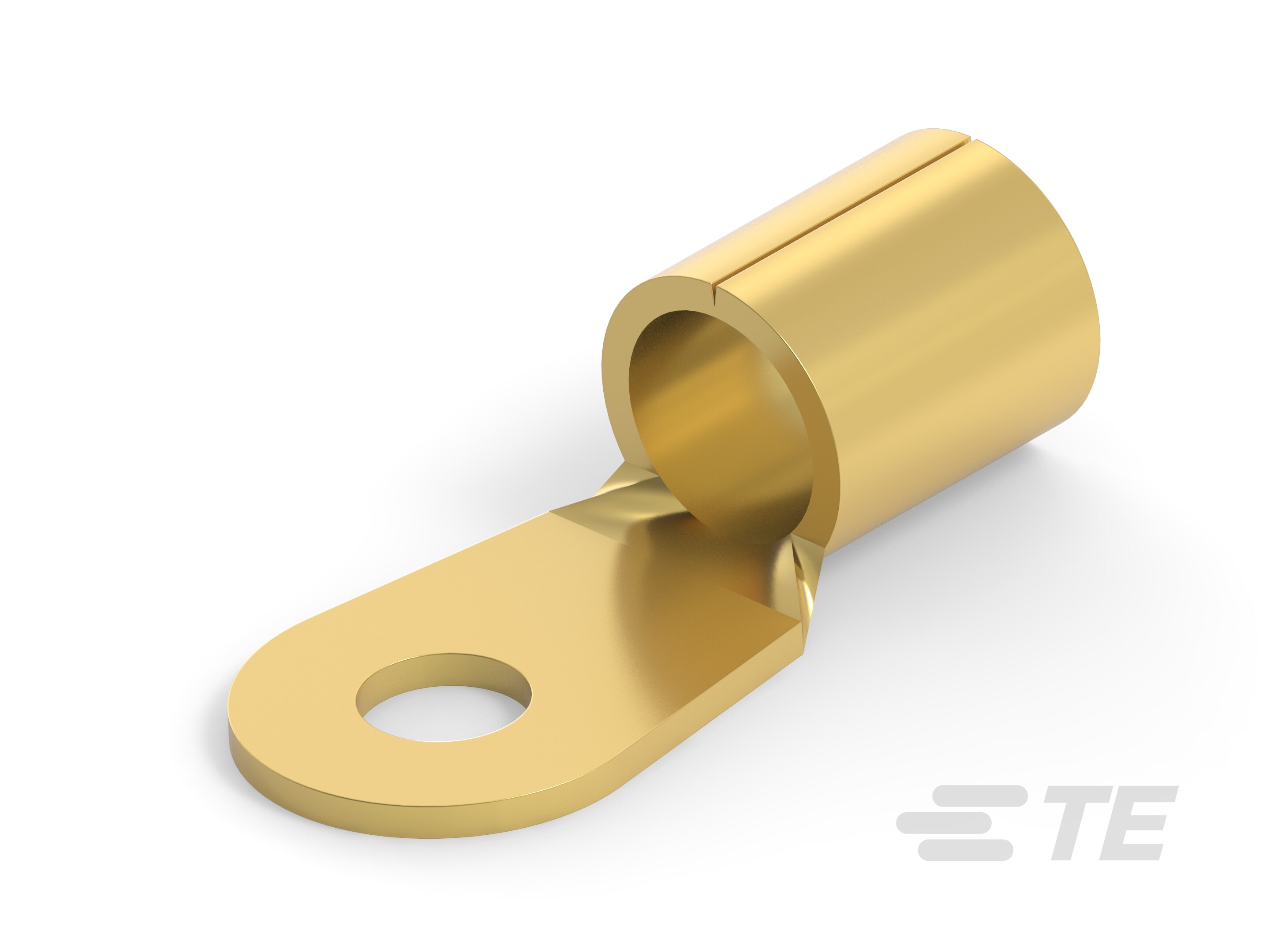

Closed Ring Tongue Terminal, 1/0 AWG, 5/16 / M8 Stud, 8.33 mm [.327 in] Stud Diameter, Closed Barrel, Straight, Gold Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 321867-3 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 1.925 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.07 in |
| Width - Outer Edges | 0.807 in |
| Wire Gauge | 1/0 AWG |
