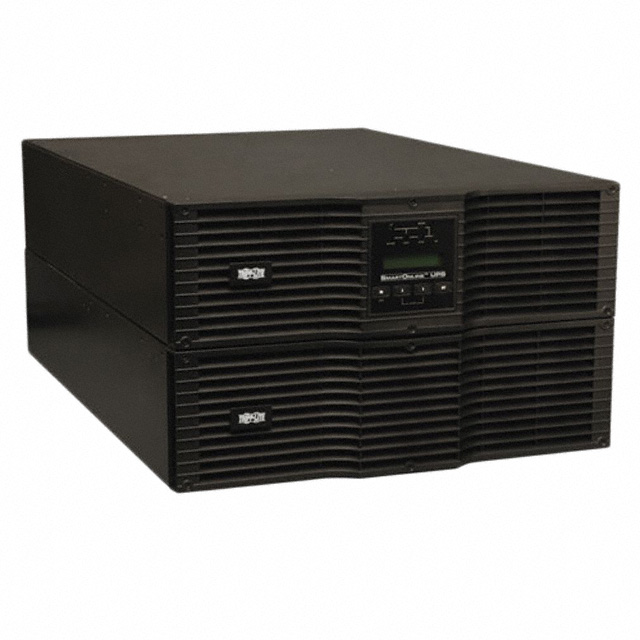

SU10000RT3U
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), RACK MOUNT, 6 OUTLETS, 10KVA / 9KW, 240 V, 240 V, 4.3 MIN
SU10000RT3U
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), RACK MOUNT, 6 OUTLETS, 10KVA / 9KW, 240 V, 240 V, 4.3 MIN
Description
General part information
SU10000RT3U
UNINTERRUPTIBLE POWER SUPPLY (UPS), RACK MOUNT, 6 OUTLETS, 10KVA / 9KW, 240 V, 240 V, 4.3 MIN
Technical Specifications
Parameters and characteristics for this part
| Specification | SU10000RT3U |
|---|---|
| AC Outlets (Count) | 6 count |
| Applications | Network, Single Phase |
| Backup Time - Max Load | 4.3 minutes |
| Form | Rackmount |
| Height | 5.142 in |
| Input Connector | Hardwired |
| Output Connector | NEMA L6-20R, NEMA L6-30R |
| Output Connector Quantity (NEMA L6-20R) | 4 |
| Output Connector Quantity (NEMA L6-30R) | 2 |
| Power - Rated (VA) | 10 kVA |
| Power - Rated (W) | 9000 W |
| Size / Dimension Length | 25.819 in |
| Size / Dimension Width | 17.5 in |
| Type | Online (Double Conversion) |
| Voltage - Output | 200 V, 230 V, 208 V, 240 V, 220 V |
| Voltage - Output | 220V, 230V, 200V, 208V, 240V |
| Voltage - Output (1) | 200 V |
| Voltage - Output (2) | 208 V |
| Voltage - Output (3) | 220 V |
| Voltage - Output (4) | 230 V |
| Voltage - Output (5) | 240 V |
| Weight | 43 lbs |
