364A795
ActiveWinchester Interconnect

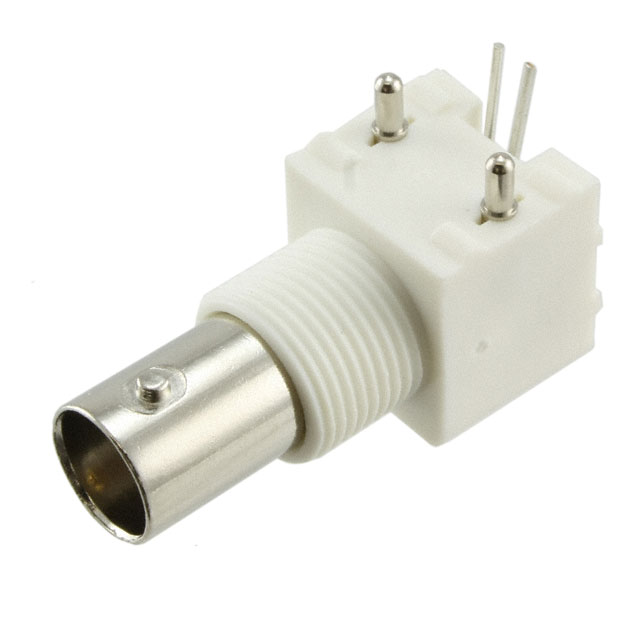

CONN BNC JACK R/A 75 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
364A795
ActiveWinchester Interconnect
CONN BNC JACK R/A 75 OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 364A795 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Features | Isolated, Board Guide |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | White, Silver |
| Impedance | 75 Ohms |
| Ingress Protection | Weatherproof |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.28 | |
| 10 | $ 9.58 | |||
| 25 | $ 8.98 | |||
| 50 | $ 8.55 | |||
| 100 | $ 8.14 | |||
| 250 | $ 7.63 | |||
Description
General part information
364A795
BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
