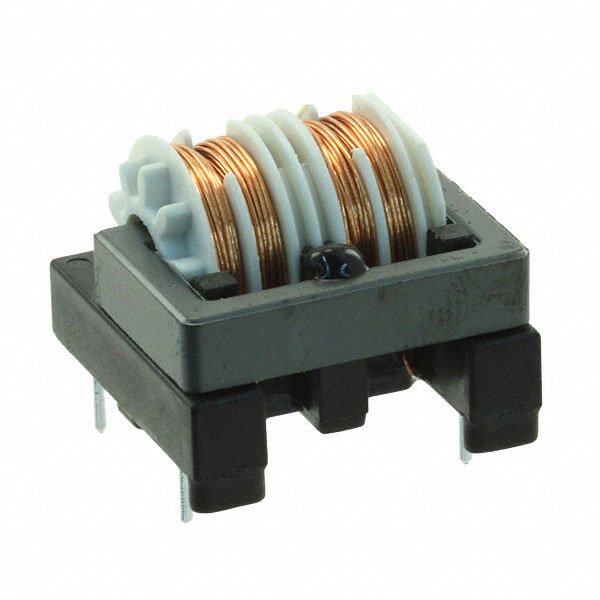

TLF14CBH3321R0K1
ObsoleteTaiyo Yuden
CMC 3.3MH 1A 2LN TH
TLF14CBH3321R0K1
ObsoleteTaiyo Yuden
CMC 3.3MH 1A 2LN TH
Description
General part information
TLF14CBH3321R0K1
3.3 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1A DCR 320mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TLF14CBH3321R0K1 |
|---|---|
| Current Rating (Max) | 1 A |
| DC Resistance (DCR) (Max) | 320 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.689 in |
| Inductance | 3.3 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.906 in |
| Size / Dimension Width | 0.866 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
