BB-03AFMM-LR7A03
ActiveMcGill Microwave Systems

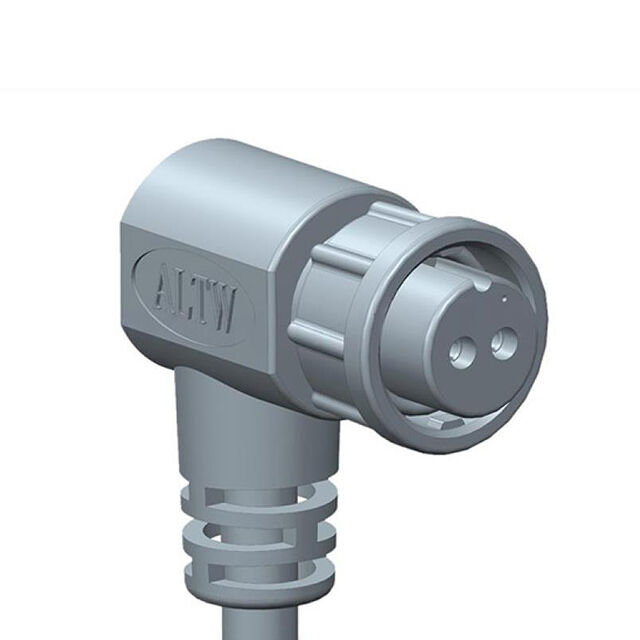

CERES, STANDARD SIZE, PLASTIC, 10A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, 2 POINTS LOCK, OVERMOLDED, LENGTH 3000
BB-03AFMM-LR7A03
ActiveMcGill Microwave Systems
CERES, STANDARD SIZE, PLASTIC, 10A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, 2 POINTS LOCK, OVERMOLDED, LENGTH 3000
Description
General part information
BB-03AFMM-LR7A03
Circular Cable Assembly Shielded 9.84' (3.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-03AFMM-LR7A03 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | Keyed |
| 1st Connector Shell Size - Insert | B |
| 1st Connector Type | Right Angle, Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 9.84 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
