PT02E-14-12P(SR)
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB RECEPT
PT02E-14-12P(SR)
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB RECEPT
Description
General part information
PT02E-14-12P(SR)

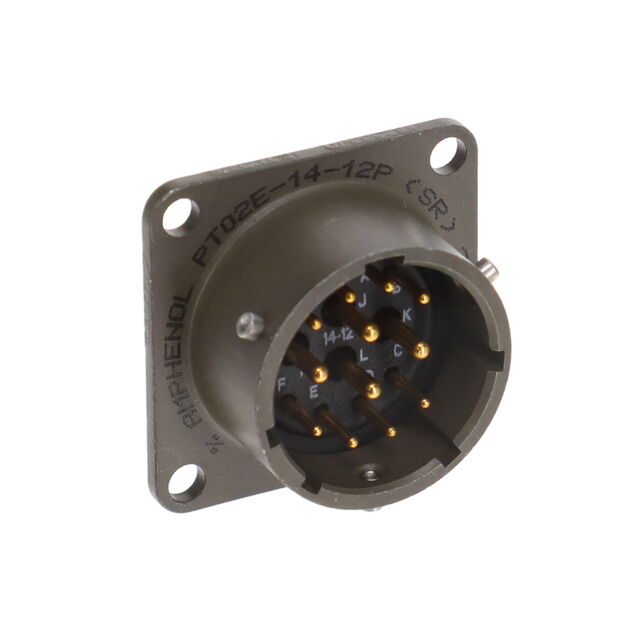

12 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PT02E-14-12P(SR) |
|---|---|
| Applications | Industrial, Instrumentation, Military, Mass Transit, Aerospace |
| Cable Opening | 0.823 in |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating Options | 7.5A, 13A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Sealed |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate, Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 14 mm |
| Shell Size - Insert Width | 12 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 600 V |
