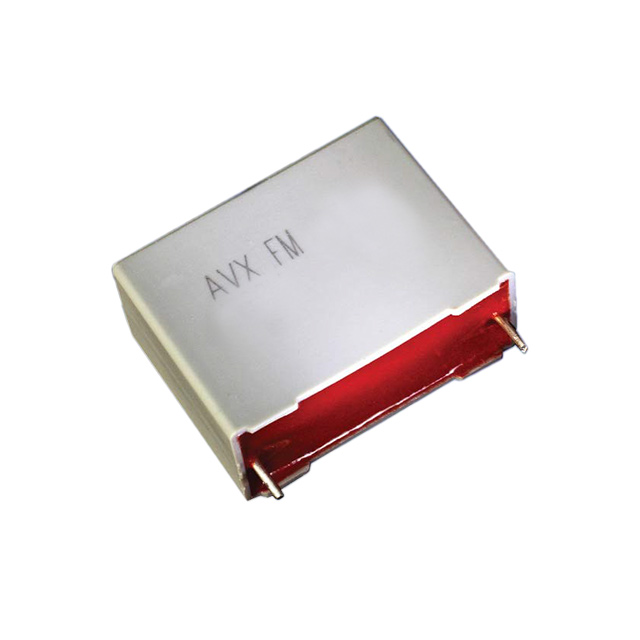

FMA6E0153K02L
ActiveKYOCERA AVX
CAP FILM 0.015UF 10% 630VDC RAD
FMA6E0153K02L
ActiveKYOCERA AVX
CAP FILM 0.015UF 10% 630VDC RAD
Description
General part information
FMA6E0153K02L
0.015 µF Film Capacitor 630V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMA6E0153K02L |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 0.015 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.453 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 630 V |
