Description
General part information

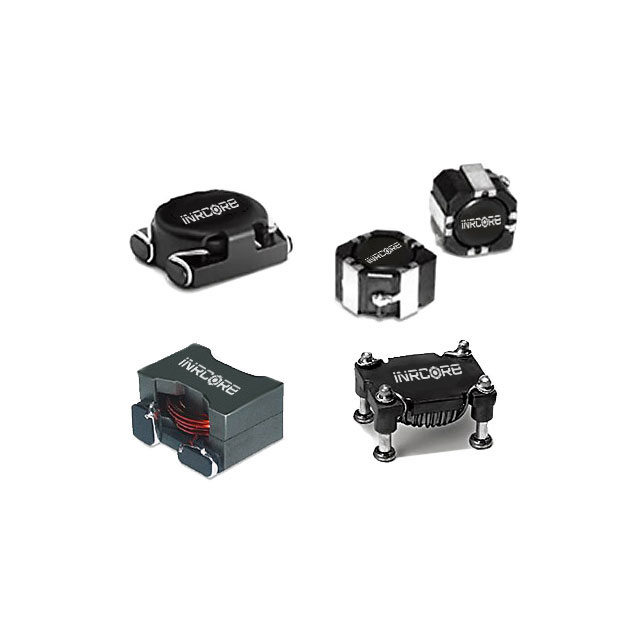

PL8502
25 µH Unshielded Toroidal Inductor 2.4 A 74mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PL8502 |
|---|---|
| Current Rating | 2.4 A |
| DC Resistance (DCR) (Max) | 74 mOhm |
| Height - Seated (Max) | 0.32 in |
| Inductance | 25 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.625 in |
| Size / Dimension Width | 0.525 in |
| Tolerance | 10 % |
| Type | Toroidal |
