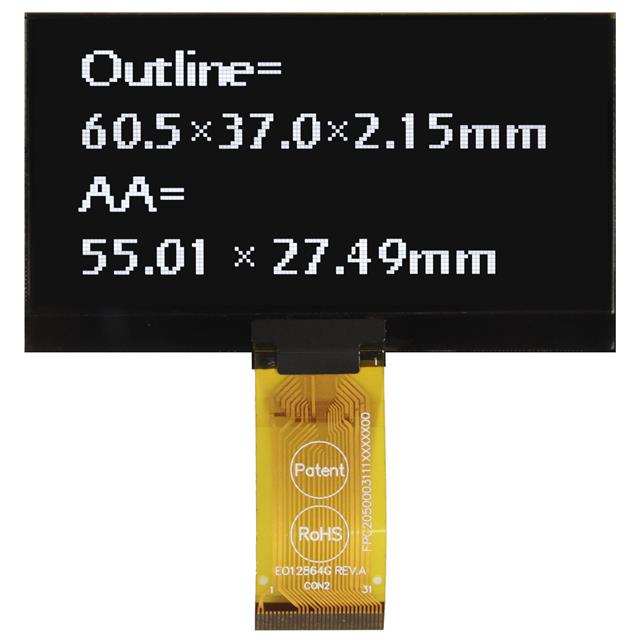

WEO012864KWPP3N00F00
ActiveWinstar Display
2" 128X64 COG
WEO012864KWPP3N00F00
ActiveWinstar Display
2" 128X64 COG
Description
General part information
WEO012864KWPP3N00F00
Non-Touch Graphic LCD Display Module Passive White OLED - Passive Matrix 8-Bit, Parallel 2.7" (68.58mm) 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | WEO012864KWPP3N00F00 |
|---|---|
| Backlight | Without Backlight |
| Diagonal Screen Size | 2.7 in |
| Display Mode | Passive |
| Display Type | OLED - Passive Matrix |
| Dot Pitch Height | 0.48 mm |
| Dot Pitch Width | 0.48 mm |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.45 mm |
| Dot Size Width | 0.45 mm |
| Graphics Color | White |
| Interface | Parallel |
| Interface Data Width | 8 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 32.69 mm |
| Viewing Area Width | 63.41 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
