Description
General part information

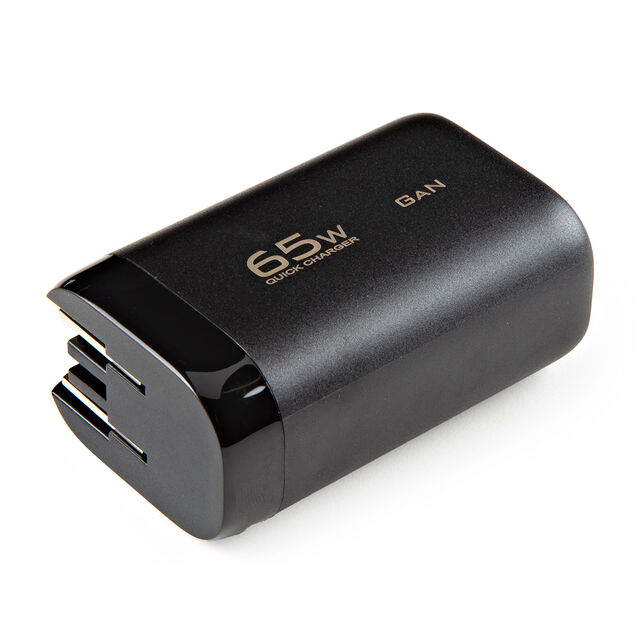

TOL-24059
3.3V, 5V, 9V, 12V, 15V, 20V 65 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TOL-24059 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | FCC, CE |
| Current - Output (Max) Options | 2.5A, 3.25A, 1.5A, 3A |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | USB A Receptacle, USB C Receptacle |
| Power (Watts) | 65 W |
| Region Utilized | North America |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output (1) | 3.3 V |
| Voltage - Output (2) | 5 V |
| Voltage - Output (3) | 9 V |
| Voltage - Output (4) | 12 V |
| Voltage - Output (5) | 15 V |
| Voltage - Output (6) | 20 V |
