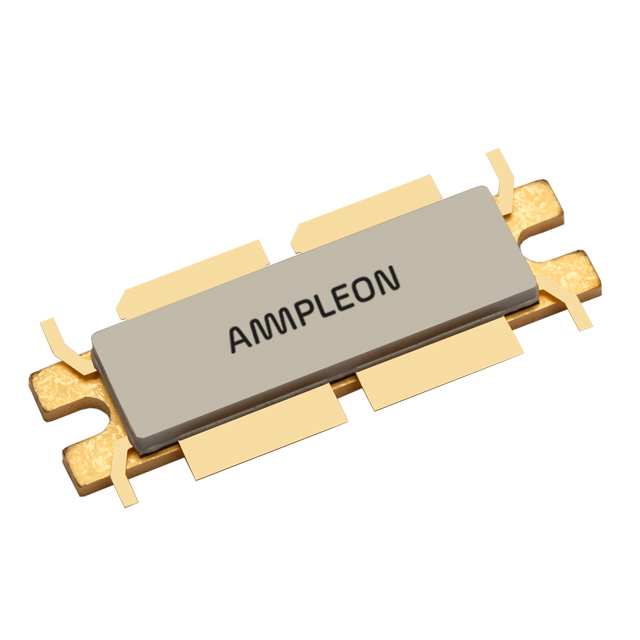

BLF6G15L-250PBRN,1
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLF6G15L-250PBRN,1
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLF6G15L-250PBRN,1 |
|---|---|
| Current - Test | 1.41 A |
| Current Rating (Amps) | 64 A |
| Frequency [Max] | 1.51 GHz |
| Frequency [Min] | 1.47 GHz |
| Gain | 18.5 dBi |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-1110A |
| Power - Output | 60 W |
| Supplier Device Package | LDMOST |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
BLF6G15 Series
| Part | Gain | Voltage - Test | Current - Test | Current Rating (Amps) | Frequency [Max] | Frequency [Min] | Power - Output | Voltage - Rated | Package / Case | Supplier Device Package | Configuration | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. | 22 dBi | 28 V | 330 mA | 11 A | 1.51 GHz | 1.47 GHz | 2.5 W | 65 V | SOT-1112A | CDFM6 | Common Source Dual | |
Ampleon USA Inc. | 18.5 dBi | 28 V | 1.41 A | 64 A | 1.51 GHz | 1.47 GHz | 60 W | 65 V | SOT-1110A | LDMOST | Chassis Mount | |
Ampleon USA Inc. | 16 dB | 50 V | 1.3 A | 45 A | 1.49 GHz | 1.45 GHz | 65 W | 100 V | SOT-539A | SOT539A | Common Source Dual | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BLF6G15 Series
RF Mosfet 28 V 1.41 A 1.47GHz ~ 1.51GHz 18.5dB 60W LDMOST
