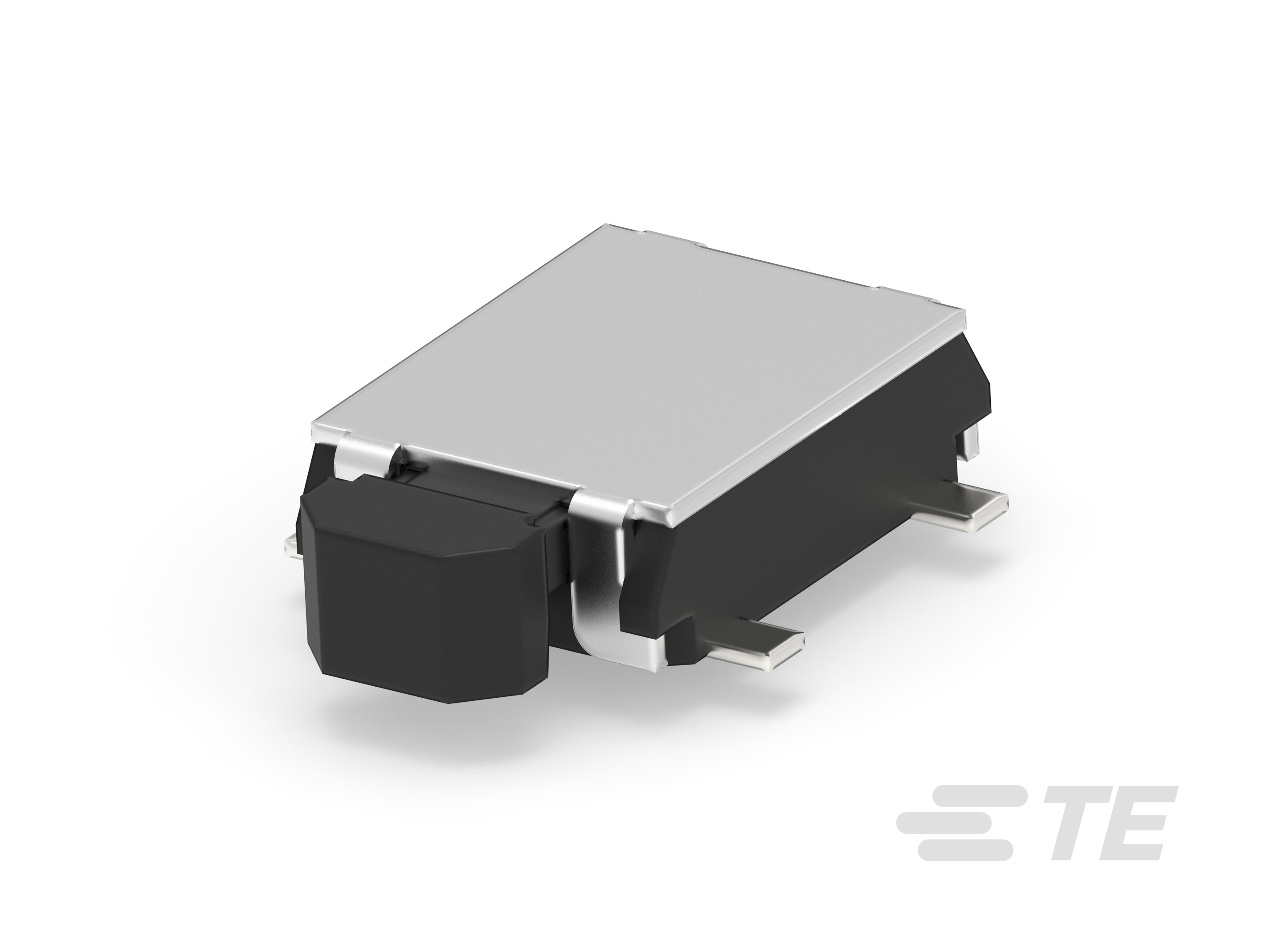

1571262-3
ActiveTE Connectivity AMP Connectors
SWITCH TACTILE SPST-NO 0.05A 12V
1571262-3
ActiveTE Connectivity AMP Connectors
SWITCH TACTILE SPST-NO 0.05A 12V
Description
General part information
1571262-3
50 mA Tactile Switch, Rectangular Actuator, Yes, Stainless Steel, Silver Contact Plating, Low Profile, 12 VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1571262-3 |
|---|---|
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating (Current) | 0.05 A |
| Features | Board Guide |
| Illumination | Non-Illuminated |
| Mounting Type | Right Angle, Surface Mount |
| Operating Force | 220 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Length | 5.4 mm |
| Outline Width | 5.6 mm |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
