ANT-GNFPC-SAHL1150UF
ActiveTE Connectivity AMP Connectors
RF ANTENNA, 1.598-1.606GHZ, 3.1DBI, 2W ROHS COMPLIANT: YES
ANT-GNFPC-SAHL1150UF
ActiveTE Connectivity AMP Connectors
RF ANTENNA, 1.598-1.606GHZ, 3.1DBI, 2W ROHS COMPLIANT: YES
Description
General part information

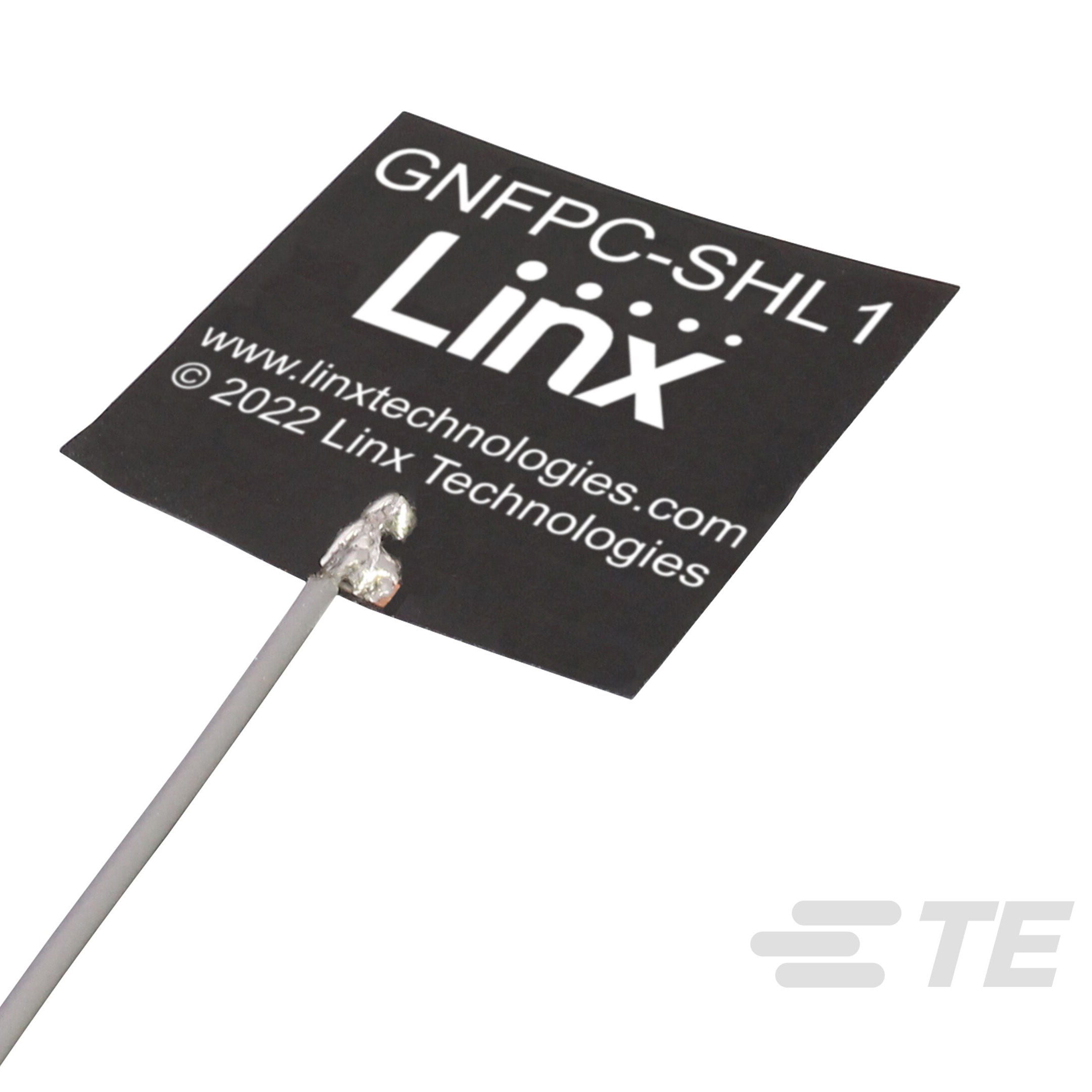

ANT-GNFPC-SAHL1150UF
Flexible PCB (FPC) Antenna, Multi Band, GNSS / GPS, Internal/Embedded Mount, Adhesive Mount, MHF / MHF1 / UMCC, Omnidirectional, Single Port
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GNFPC-SAHL1150UF |
|---|---|
| Antenna Type | Flat Patch |
| Applications | GNSS, GPS |
| Features | Cable, 150mm |
| Frequency (Center/Band) | 1.387 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.61 GHz |
| Frequency Range (Min) | 1.164 GHz |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| RF Family/Standard | Navigation |
| Termination | U.FL, UMCC, MHF1, MHF |
| VSWR | 2 |
