02221094
ActiveBopla Enclosures
BOX PLASTIC GRAY 7.87"L X 4.72"W
02221094
ActiveBopla Enclosures
BOX PLASTIC GRAY 7.87"L X 4.72"W
Description
General part information
02221094

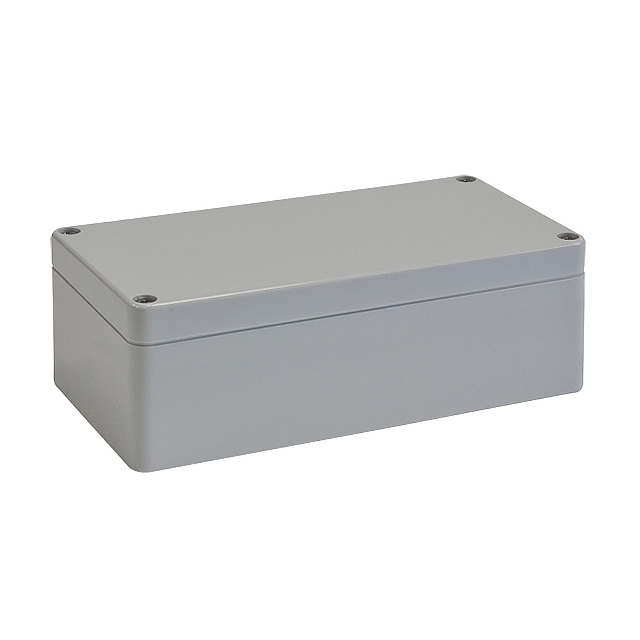

Box Plastic, Polycarbonate Gray Cover Included 7.874" L x 4.724" W (200.00mm x 120.00mm) X 2.953" (75.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 02221094 |
|---|---|
| Area (L x W) | 37.2 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight, Flame Retardant, PCB Supports |
| Height | 2.953 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | NEMA 4X, IP65 |
| Size / Dimension Length | 7.874 in |
| Size / Dimension Width | 4.724 in |
| Thickness | 0.118 in |
| Weight | 0.87 lb |
