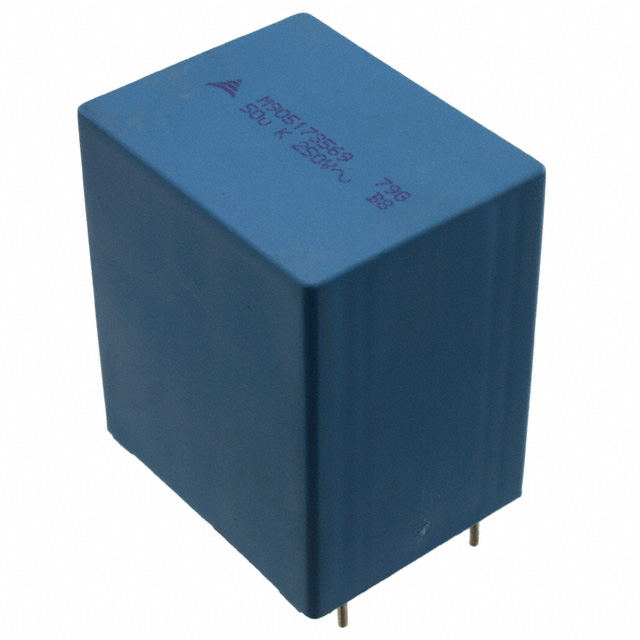

B32796G2506K
ObsoleteEPCOS - TDK Electronics
CAP FILM 50UF 10% 630VDC RADIAL
B32796G2506K
ObsoleteEPCOS - TDK Electronics
CAP FILM 50UF 10% 630VDC RADIAL
Description
General part information
B32796G2506K
50 µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | B32796G2506K |
|---|---|
| Applications | EMI, RFI Suppression, DC Link, DC Filtering |
| Capacitance | 50 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 630 V |
