Description
General part information

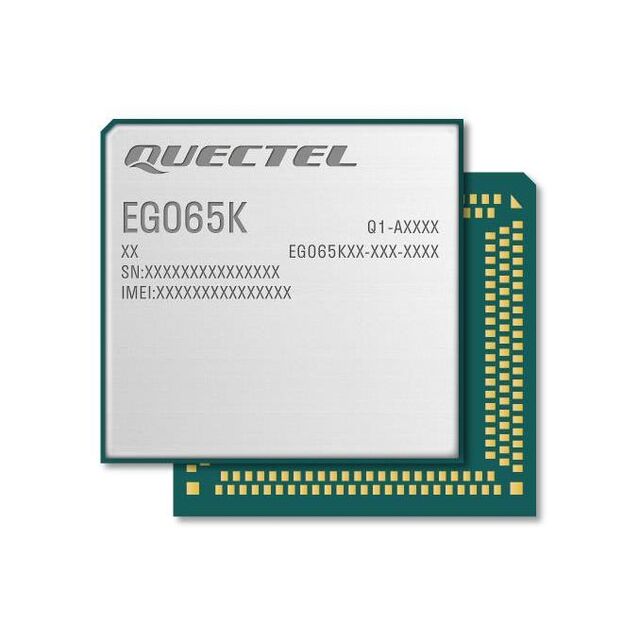

EG065KEAAA-M22-SNADA
Cellular HSPA, HSPA+, LTE Transceiver Module Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | EG065KEAAA-M22-SNADA |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 300 Mbps |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 380-SMD Module |
| Protocol | HSPA, LTE, HSPA+ |
| RF Family/Standard | Cellular |
| Serial Interfaces | I2S, I2C, ADC, SDIO, GPIO, USB, SPI, UART |
| Utilized IC / Part | SDX12-1 |
| Voltage - Supply (Maximum) | 4.5 V |
| Voltage - Supply (Minimum) | 3.3 V |
