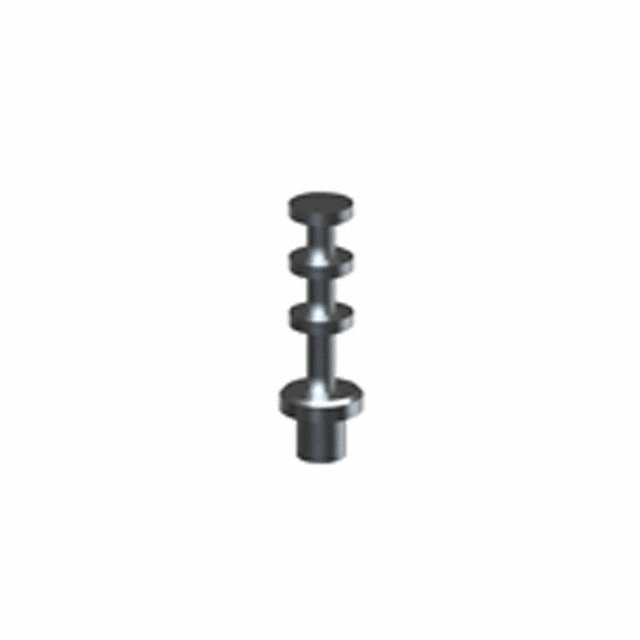

1527-3
ActiveKeystone Electronics
TERM TURRET SINGLE L=12.29MM TIN
1527-3
ActiveKeystone Electronics
TERM TURRET SINGLE L=12.29MM TIN
Description
General part information
1527-3
Terminal Turret Connector Single End 0.484" (12.29mm) Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | 1527-3 |
|---|---|
| Board Thickness | 0.093 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Turret Head | 0.145 in |
| Flange Diameter | 0.187 in |
| Insulation | Non-Insulated |
| Length - Above Board | 0.484 in |
| Length - Below Flange | 0.141 in |
| Length - Overall | 0.625 in |
| Mounting Hole Diameter | 0.116 in |
| Mounting Type | Through Hole |
| Number of Turrets | Triple |
| Staking Side OD | 0.112 in |
| Terminal Type | Single End |
| Termination | Staking Flare |
