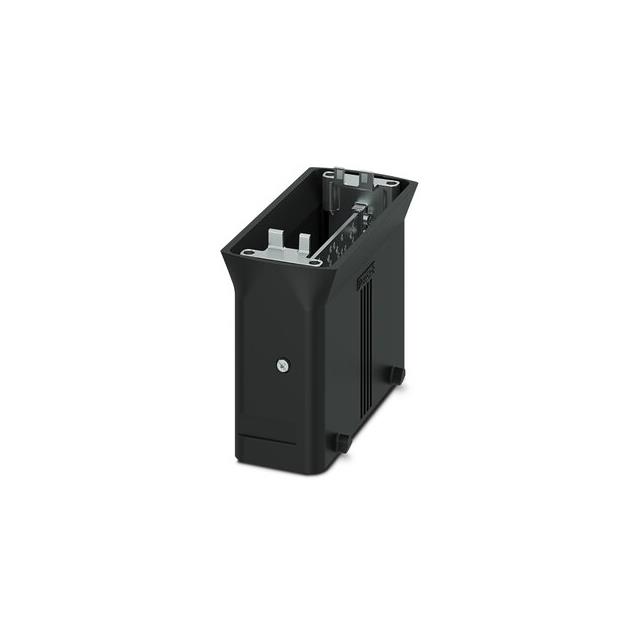

Specification	1252472

Connector Type	Base - Box Mount
Features	Feed Through, Salt Water Resistant
Housing Color	Black
Housing Material	Nylon, Polyamide, PA
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	B16
Size / Dimension Height	2.047 in
Size / Dimension Length	3.15 in
Size / Dimension Width	2.008 in
Style	Side Entry
Thread Size	M20
