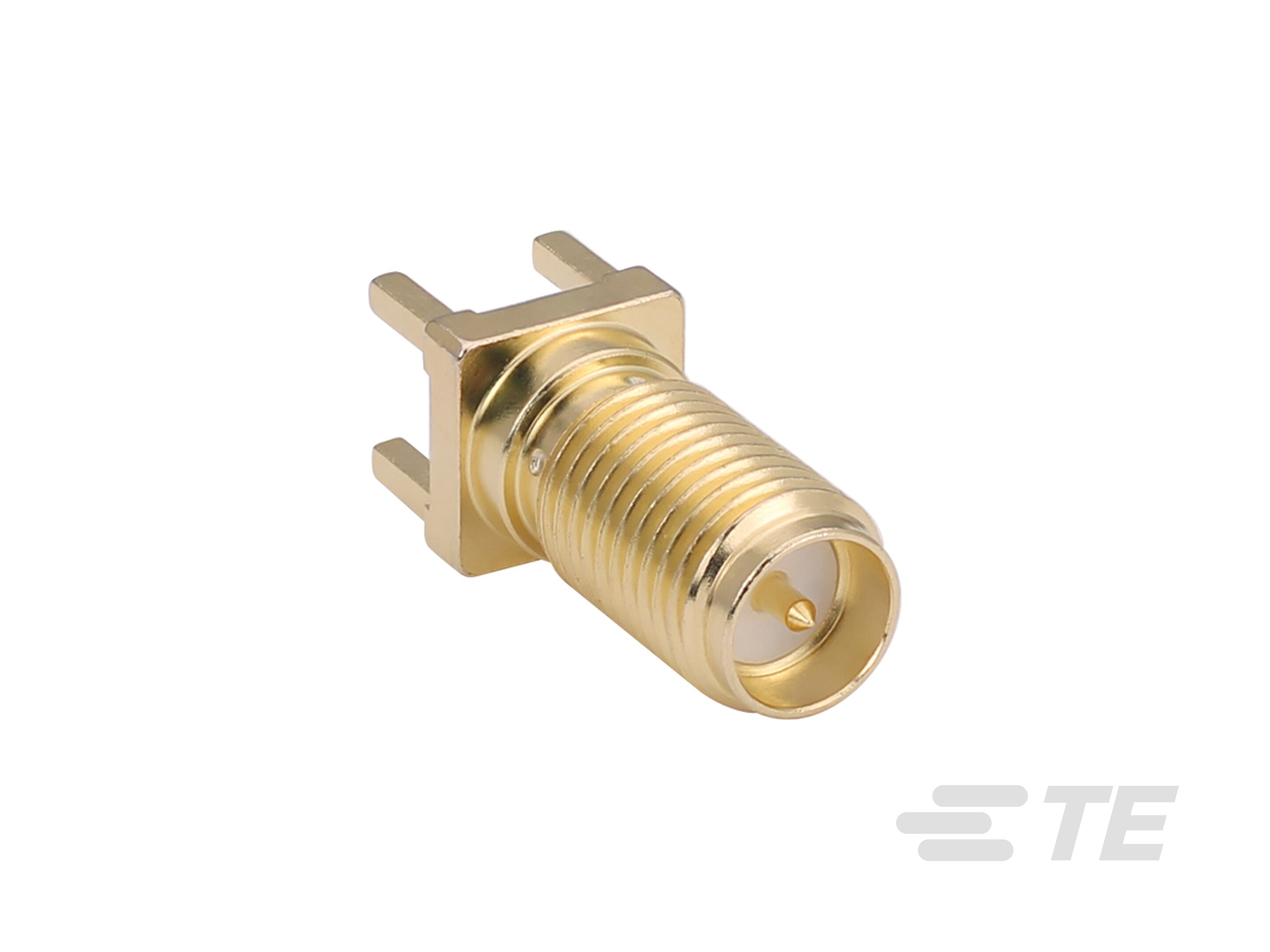

RP-SMA JACK 50 OHM PCB THROUGH HOLE

Find alt

Alpha

CONREVSMA008-G

Active

TE Connectivity AMP Connectors

RP-SMA JACK 50 OHM PCB THROUGH HOLE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

CONREVSM Series

RP-SMA Connector, Jack, 50 ohm, Threaded, 18 GHz, 1 Position, Printed Circuit Board, Board Mount, -65 – 165 °C [-85 – 329 °F], Solder, Straight, Brass
