Description
General part information
PRT-14796

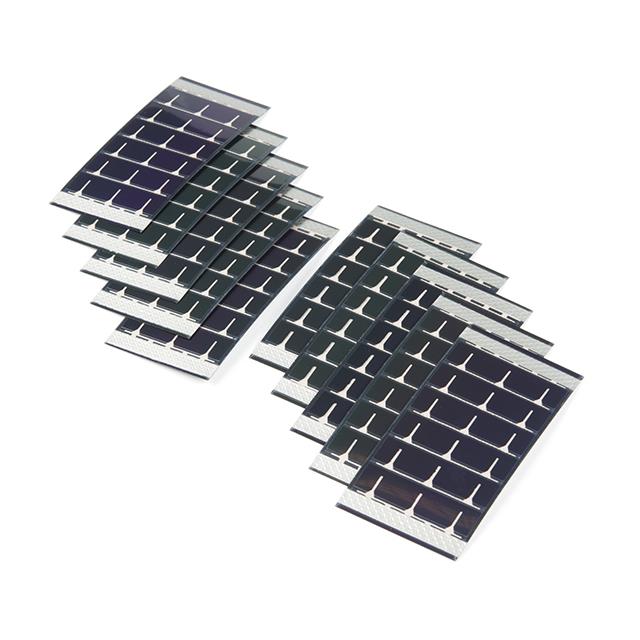

Amorphous Solar Cell 75.6 mW 10.5 V
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-14796 |
|---|---|
| Current | 10.5 mA |
| Current - Short Circuit (Isc) | 14 mA |
| Package / Case | Cells |
| Power (Watts) - Max | 75.6 mW |
| Size / Dimension Height | 0.008 in |
| Size / Dimension Length | 2.953 in |
| Size / Dimension Width | 1.441 in |
| Type | Amorphous |
| Voltage | 7.2 V |
| Voltage - Open Circuit | 10.5 V |
